Automatic Transmission/Transaxle





TRANSMISSION/TRANSAXLE TECHNICAL DATA

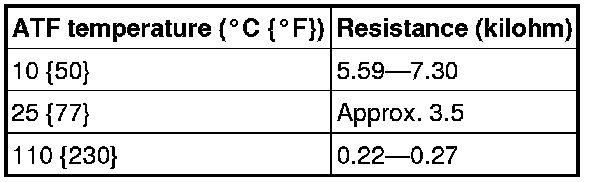

Transaxle fluid temperature (TFT) sensor





Input/turbine speed sensor





VSS

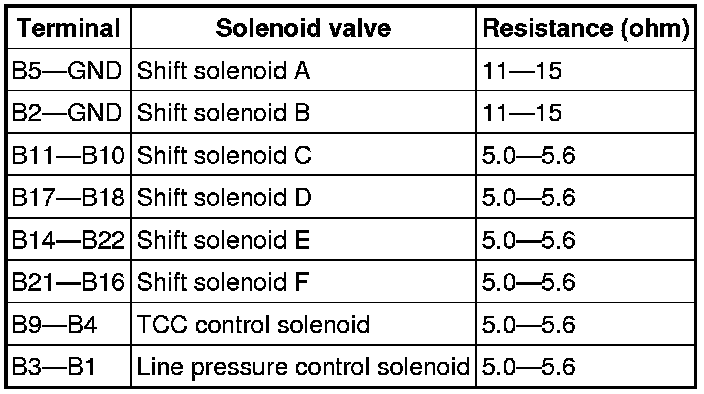

Solenoid valve resistance (ATF temperature: 20 °C {68 °F})
