Ignition Switch: Service and Repair





IGNITION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

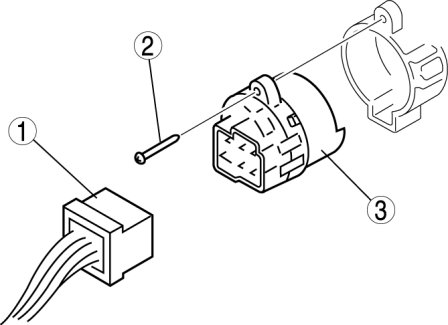

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
