Keyless Entry Receiver: Testing and Inspection

KEYLESS RECEIVER INSPECTION

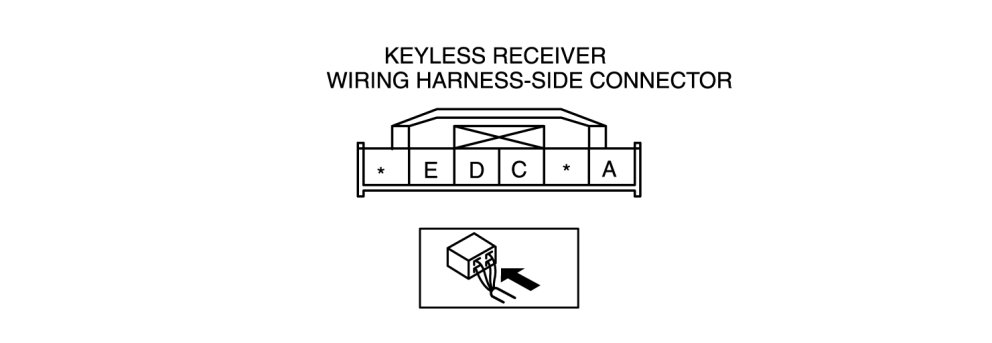

Front

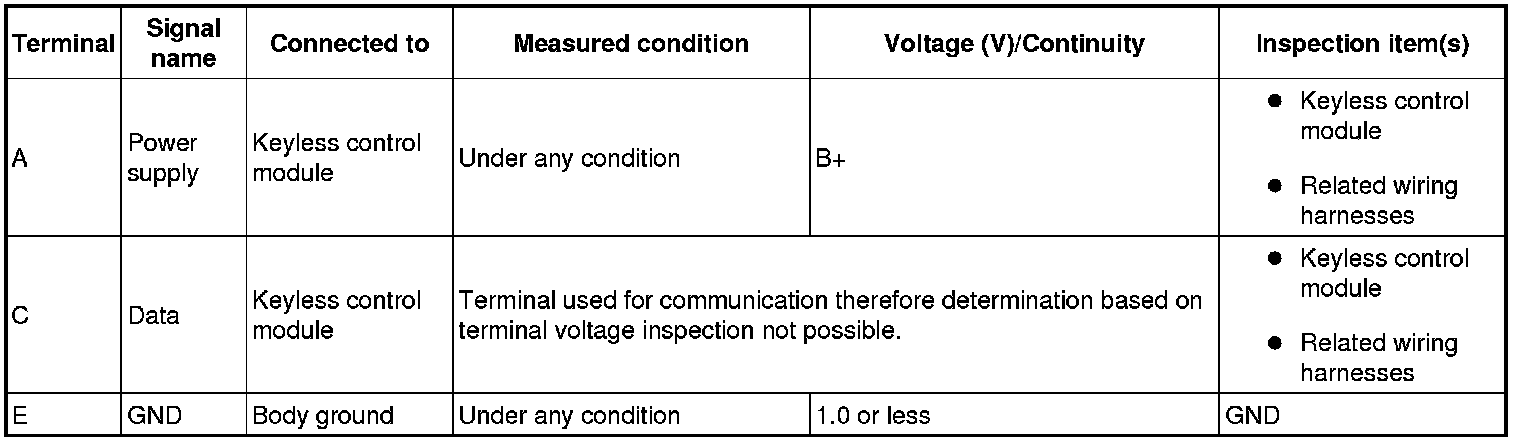

Terminal Voltage Table (Reference)

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

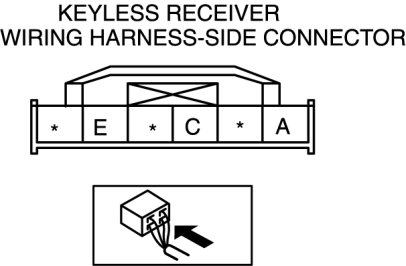

Rear

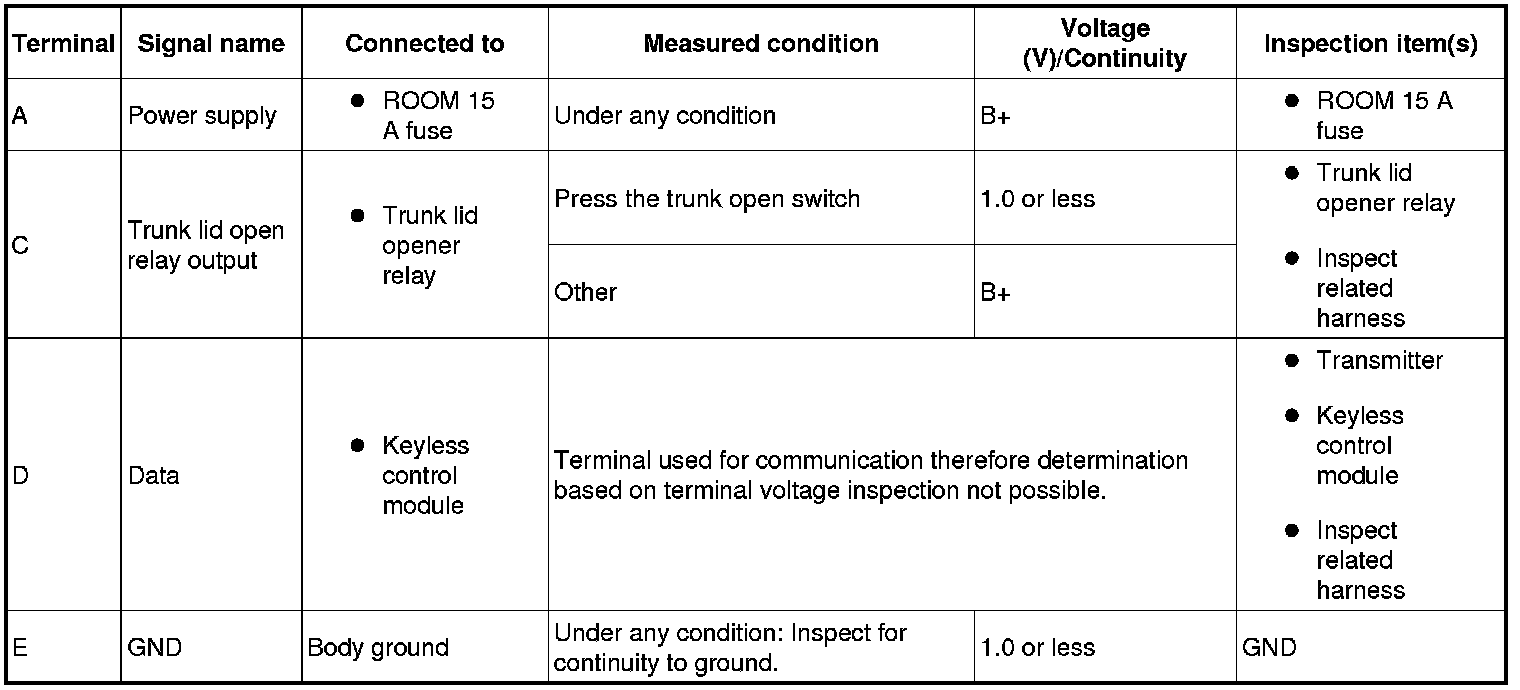

Terminal Voltage Table (Reference)

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
