DRL Control Module Removal/Installation





DRL CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the connectors.

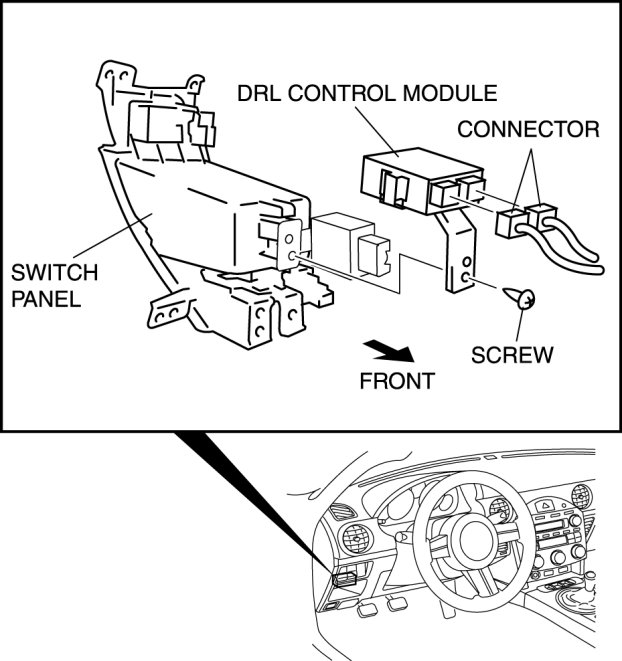

4. Remove the screw and then remove the DRL control module.

5. Install in the reverse order of removal.
