Alignment

Alignment

NOTE:
*Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.

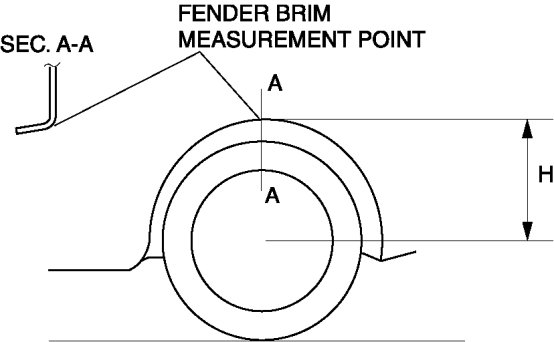

Ride Height

Measure height H from the center of the wheel to the fender brim.






Verify that the difference between the left and right dimension H is within the specification.

Standard 10 mm {0.39 in} or less

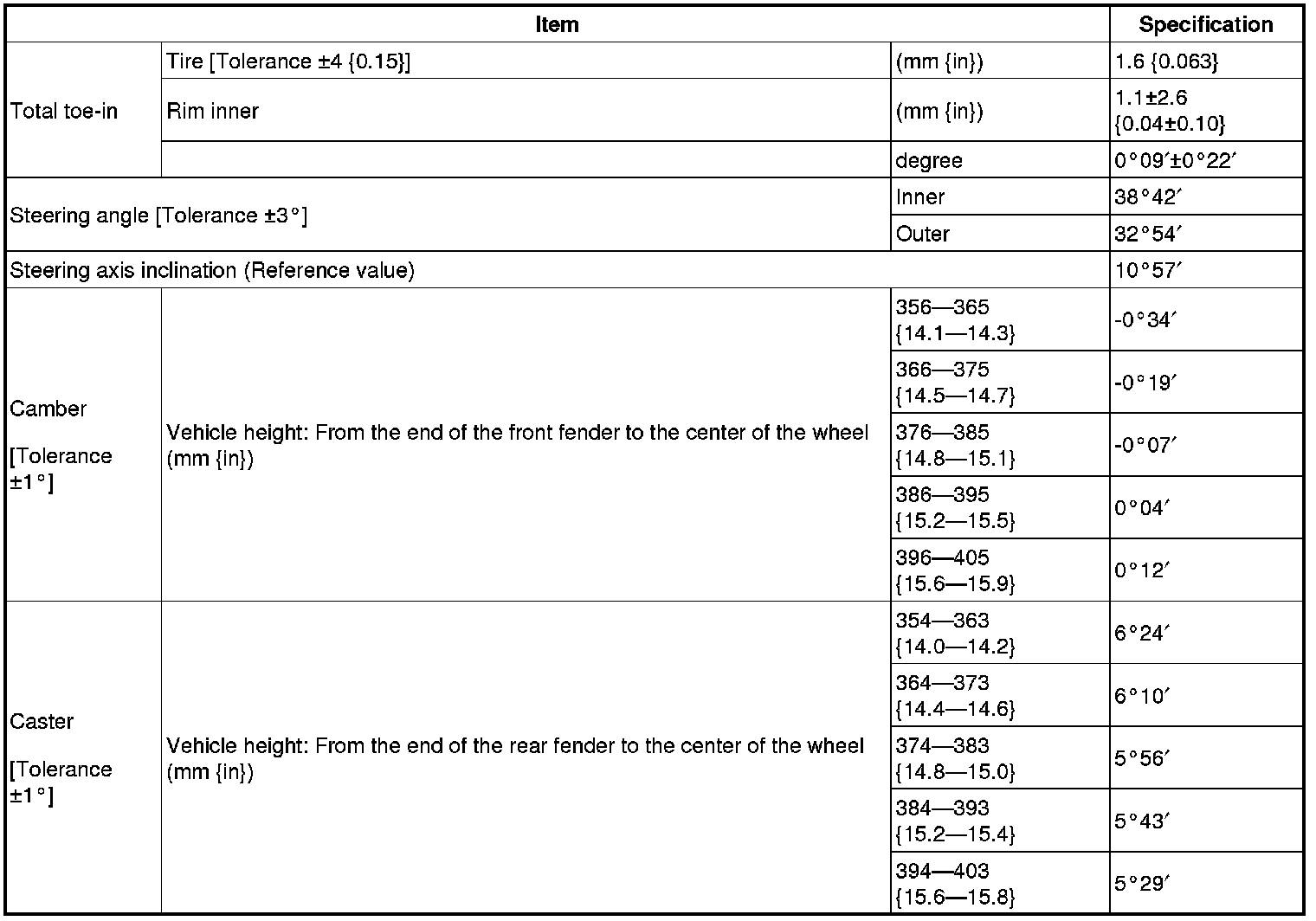

FRONT WHEEL ALIGNMENT

Difference between the left and right camber angle is within 1°

Front wheel alignment [16-inch wheel]






Front wheel alignment [17-inch wheel]

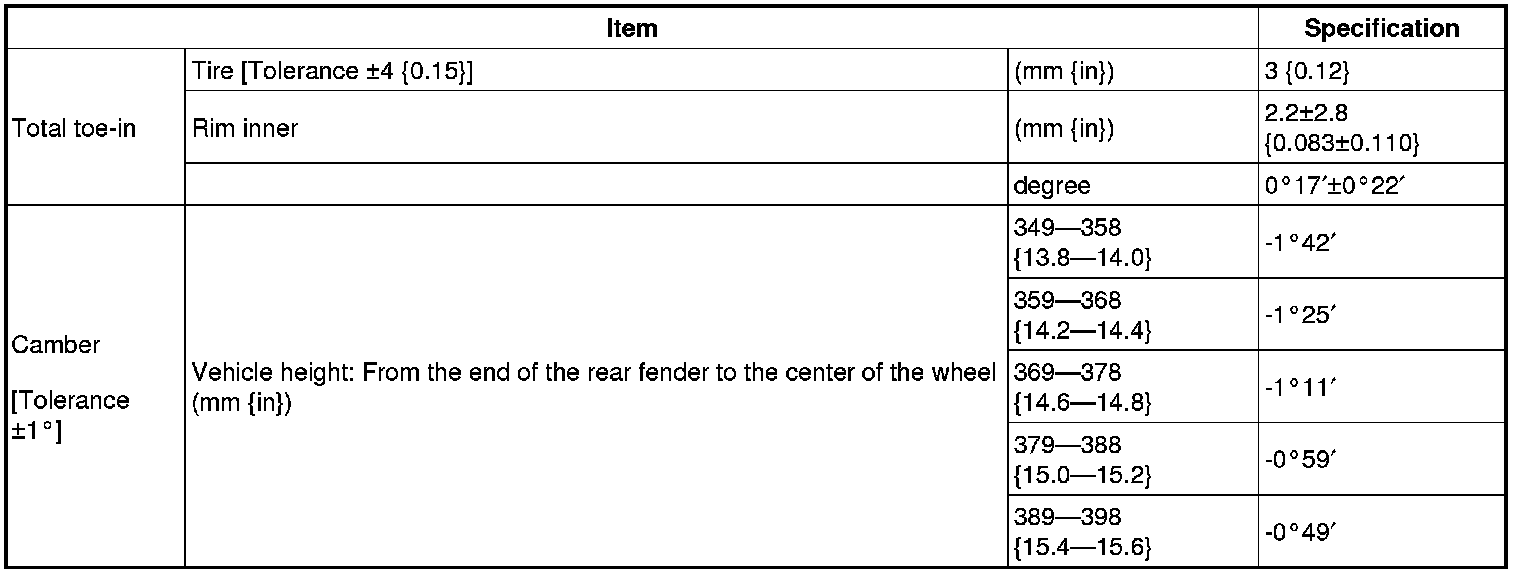

REAR WHEEL ALIGNMENT

Difference between the left and right camber angle is within 1°

Rear wheel alignment [16-inch wheel]






Rear wheel alignment [17-inch wheel]
