Control Module: Service and Repair

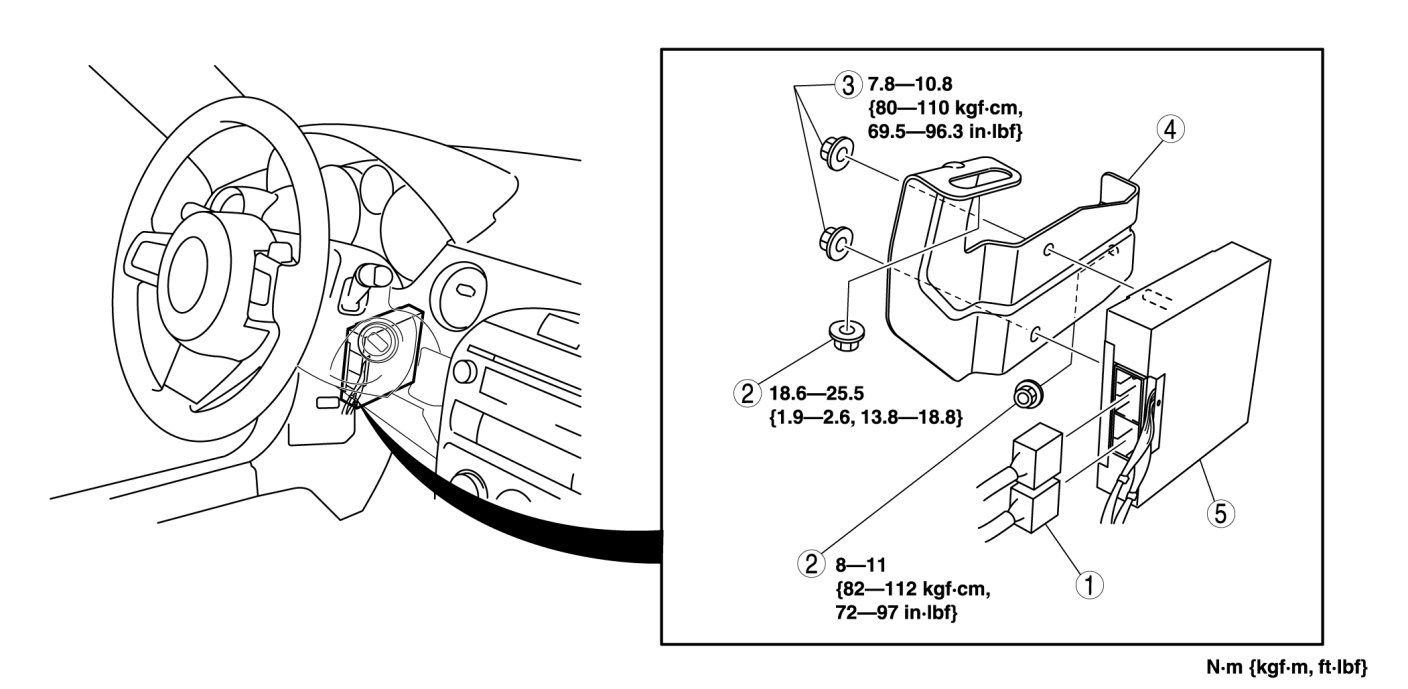

TCM REMOVAL/INSTALLATION [SJ6A-EL]

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
