Trunk Lid Opener Switch Inspection

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  2. Remove the trunk lid open switch. (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION )
  3. Inspect for continuity between the trunk lid open switch terminals.
    • If not as specified, replace the trunk lid open switch.

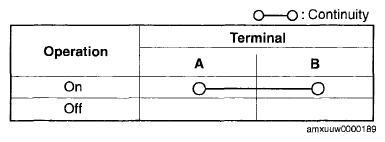

Fig 1: Continuity Chart
G06149517Courtesy of MAZDA MOTORS CORP.

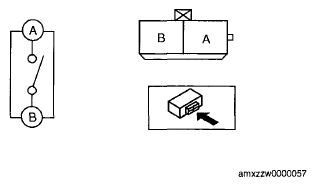

Fig 2: Trunk Lid Open Switch Terminal
G06149518Courtesy of MAZDA MOTORS CORP.
