Fuse: Locations

Fuse Location

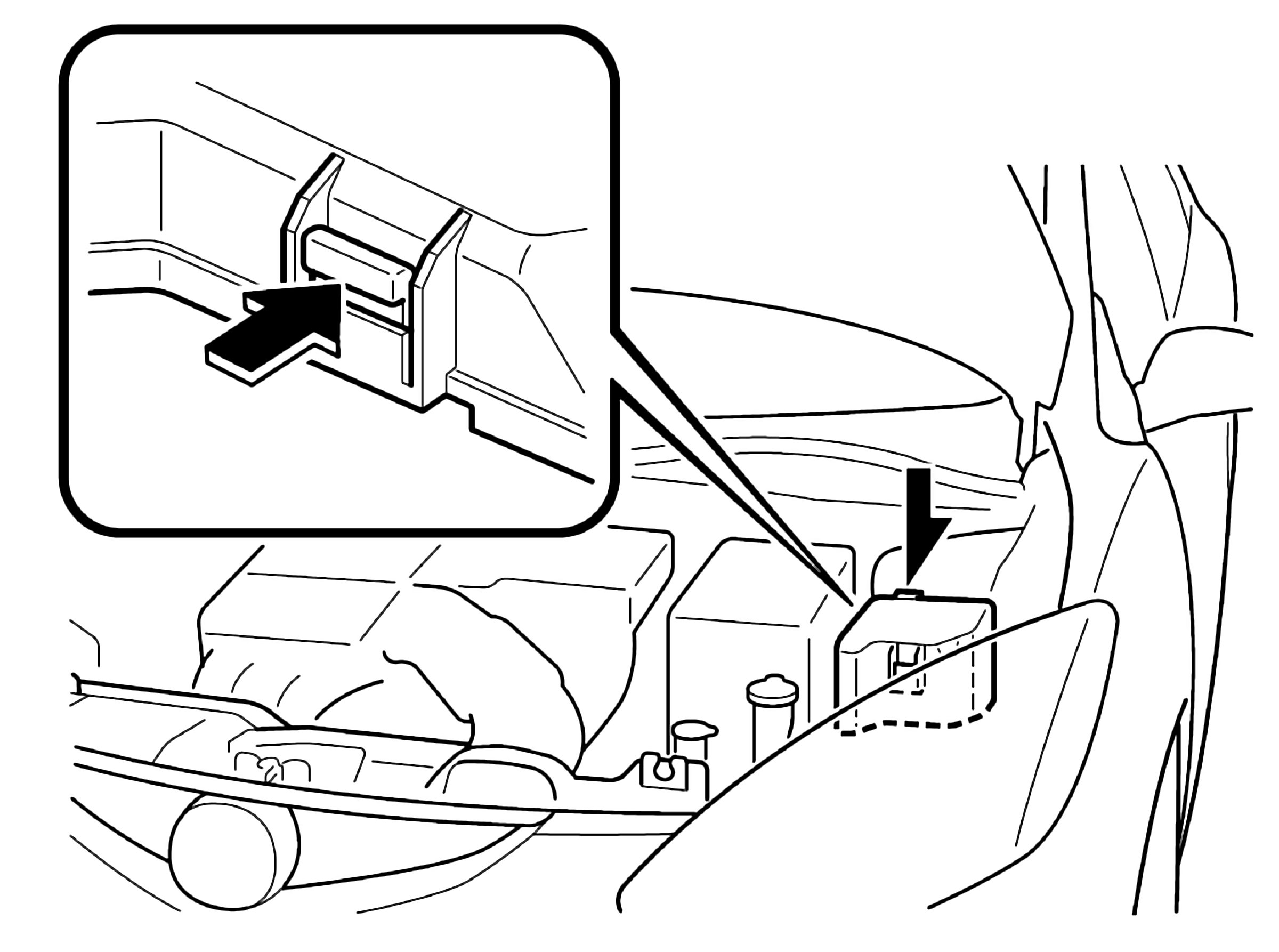

Engine Compartment Fuse Block Location:

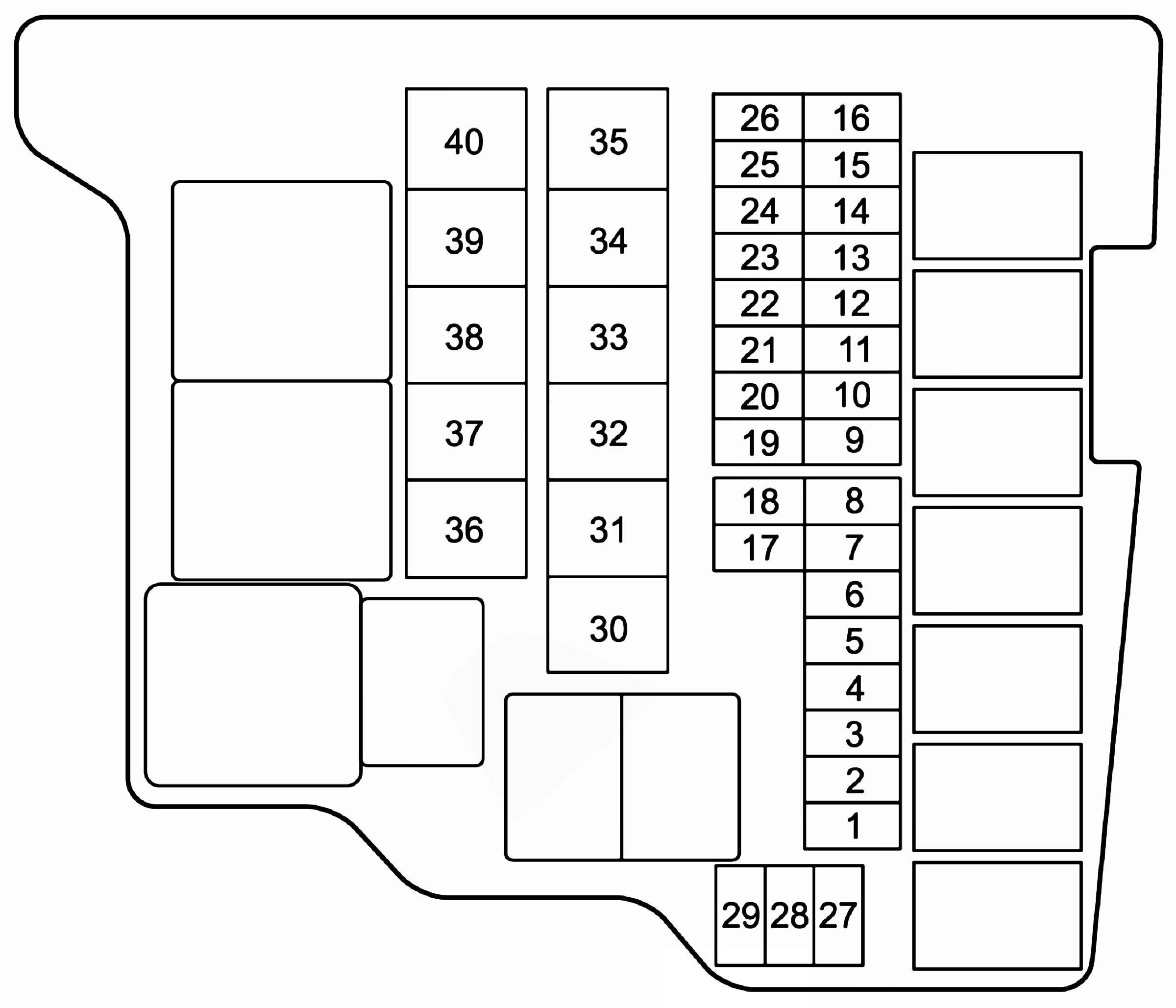

Fuse Block (Engine Compartment):

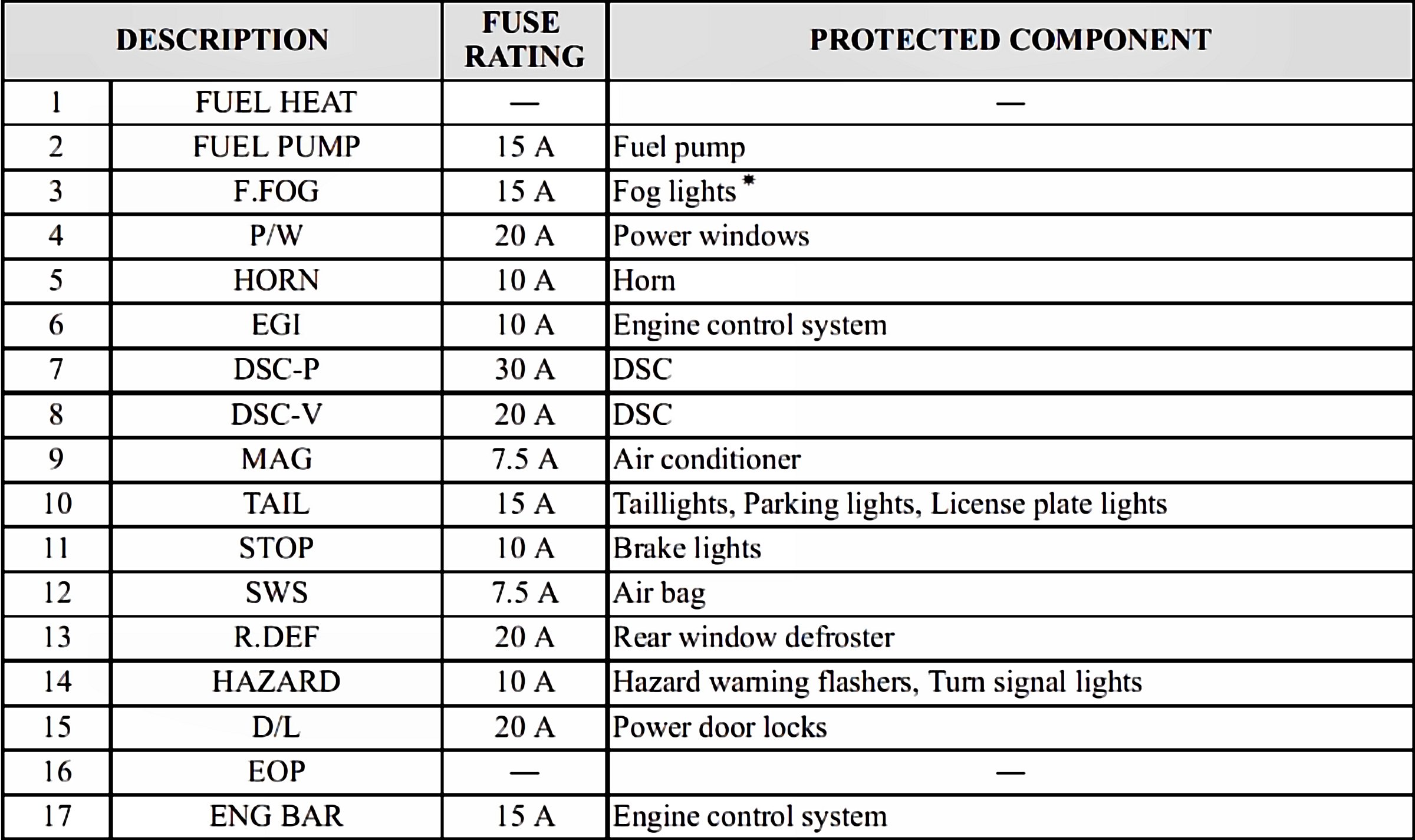

Fuses 1-17:

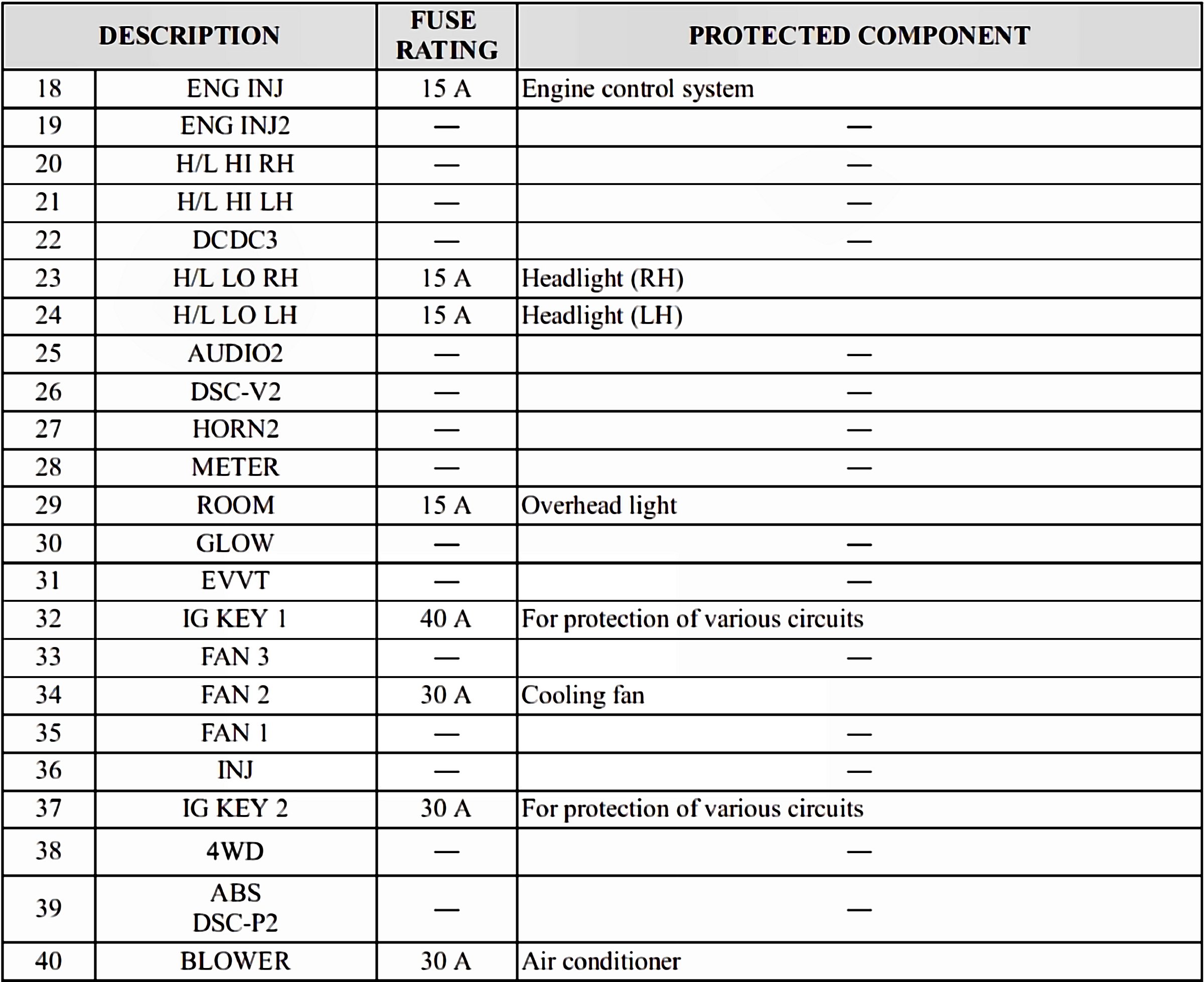

Fuses 18-40:

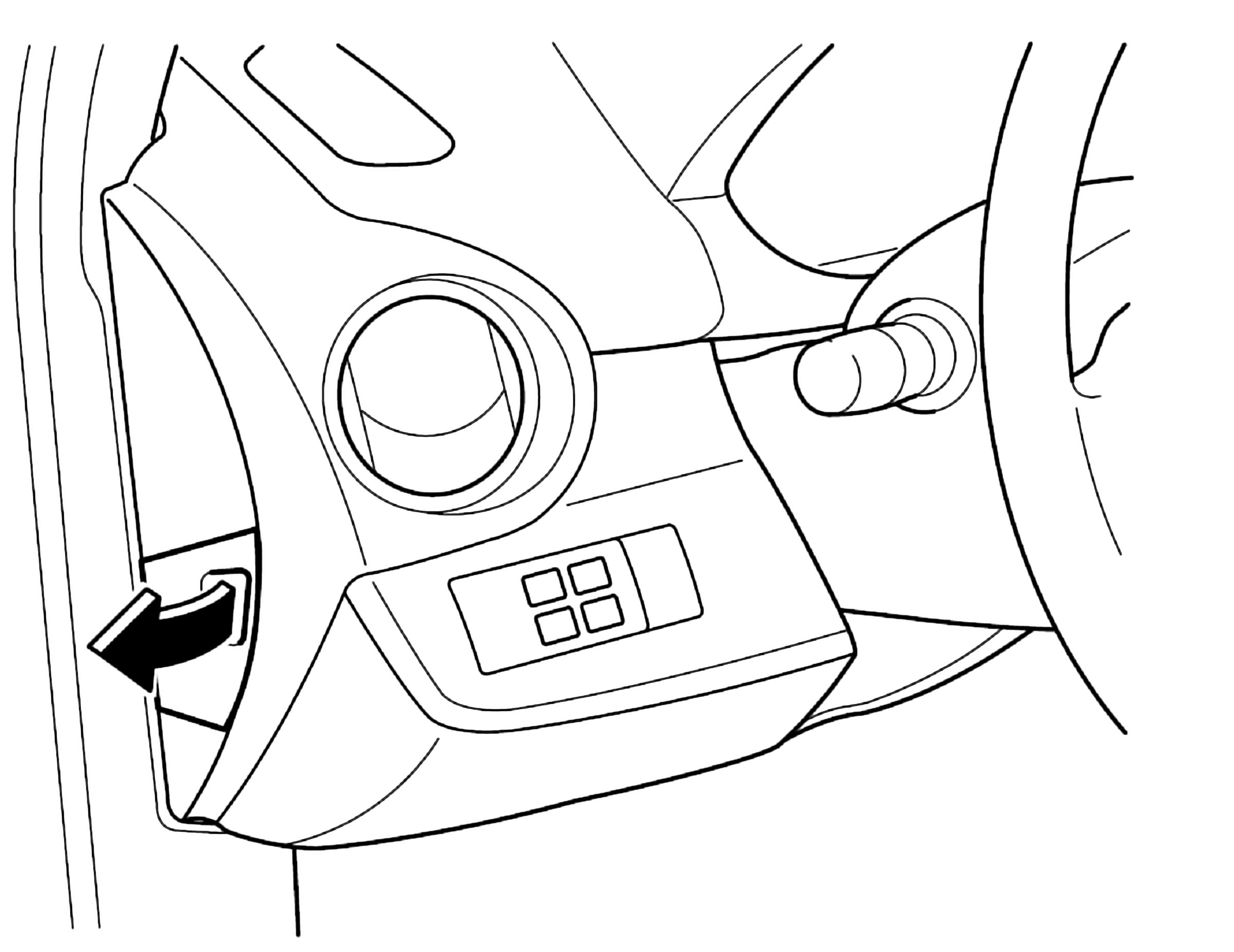

Interior Fuse Block Location - Left Side:

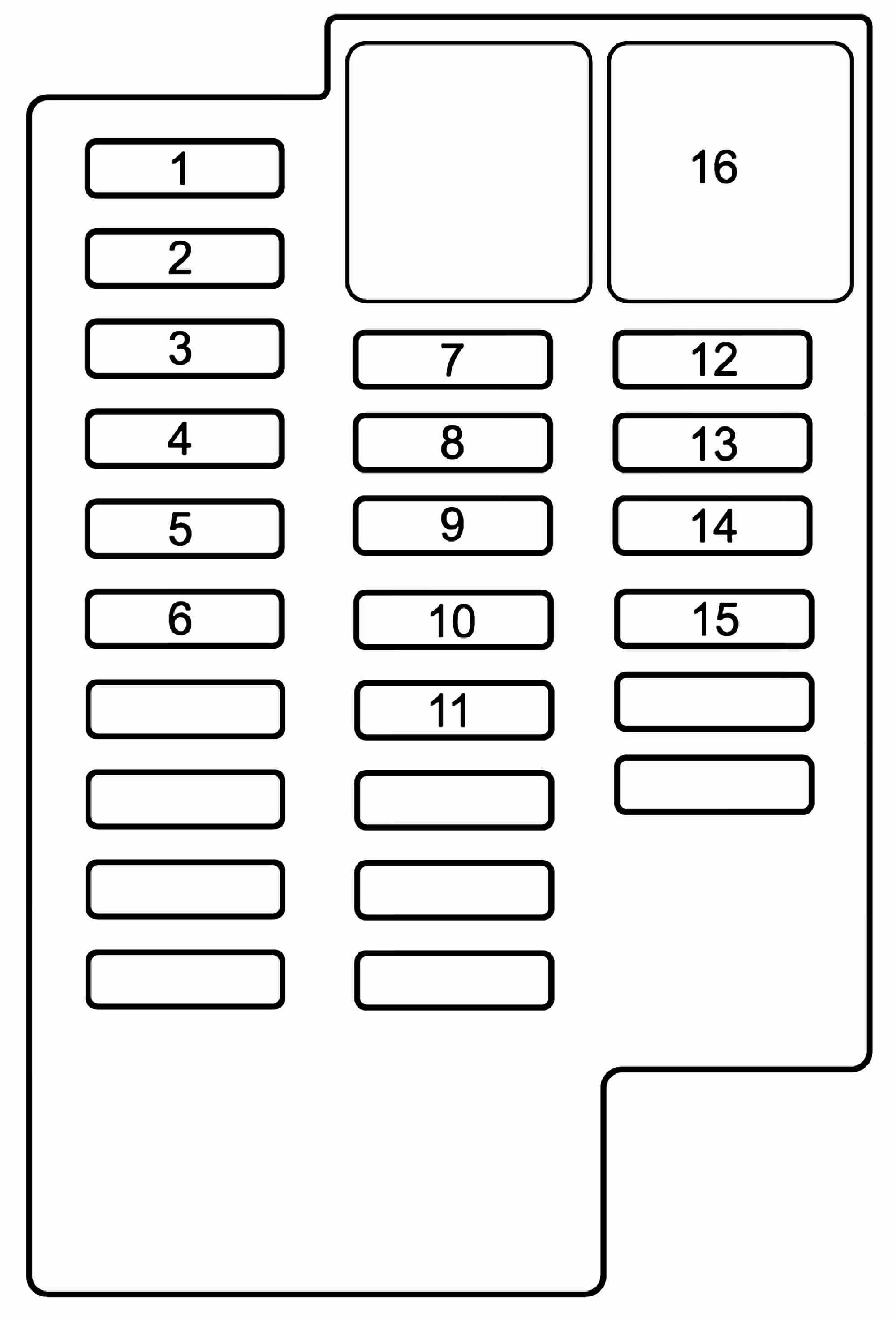

Fuse Block (Interior - Left Side):

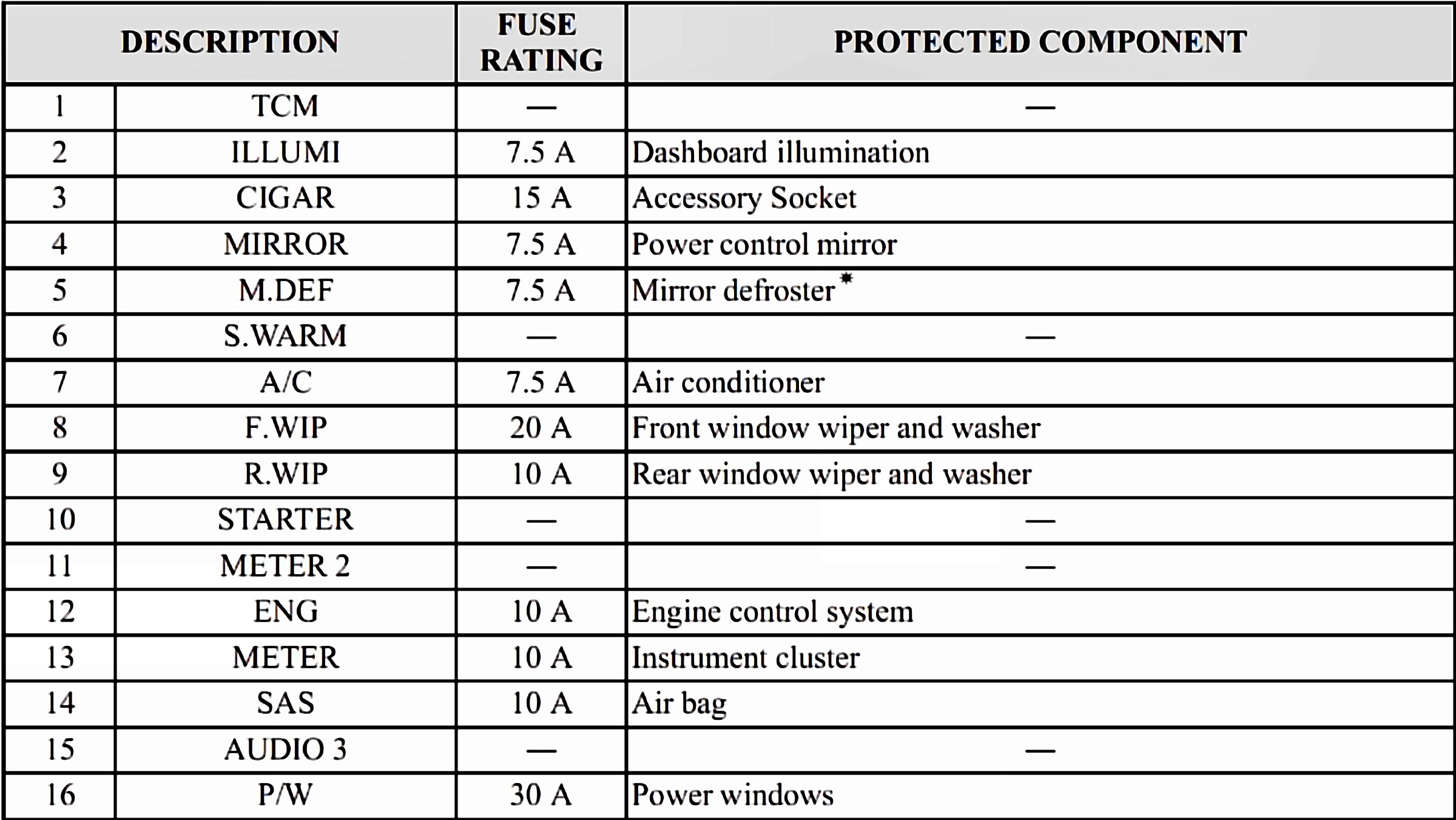

Fuses 1-16:

*: If equipped
