Engine Control System [MZR 1.5]
>>
Control System Diagram
>>
Input Device
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input Device

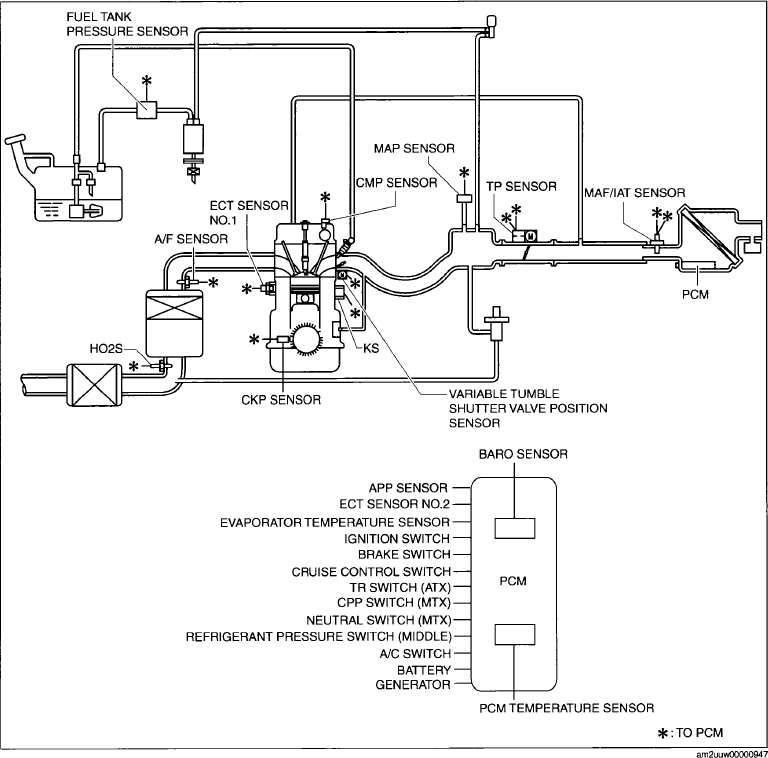

Fig 1: Control System Diagram (Input Device)
