Control System Location Index

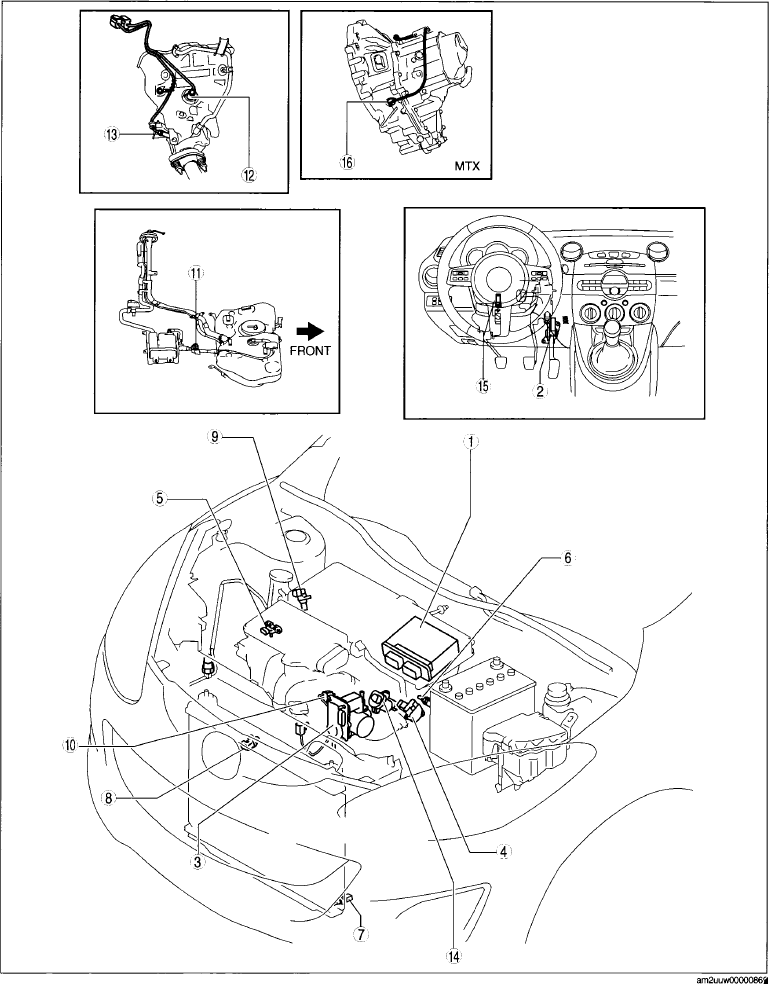

Fig 1: Identifying Control System Related Components (1 Of 2)
G09130306

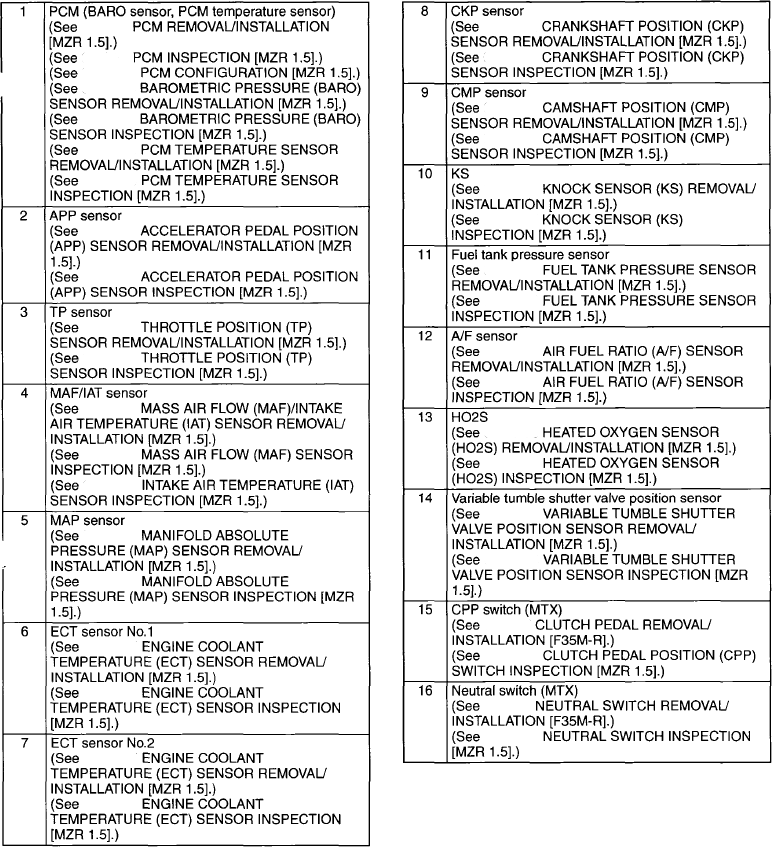

Fig 2: Identifying Control System Related Components (2 Of 2)
G09130307
