Control System Device And Control Relationship Chart

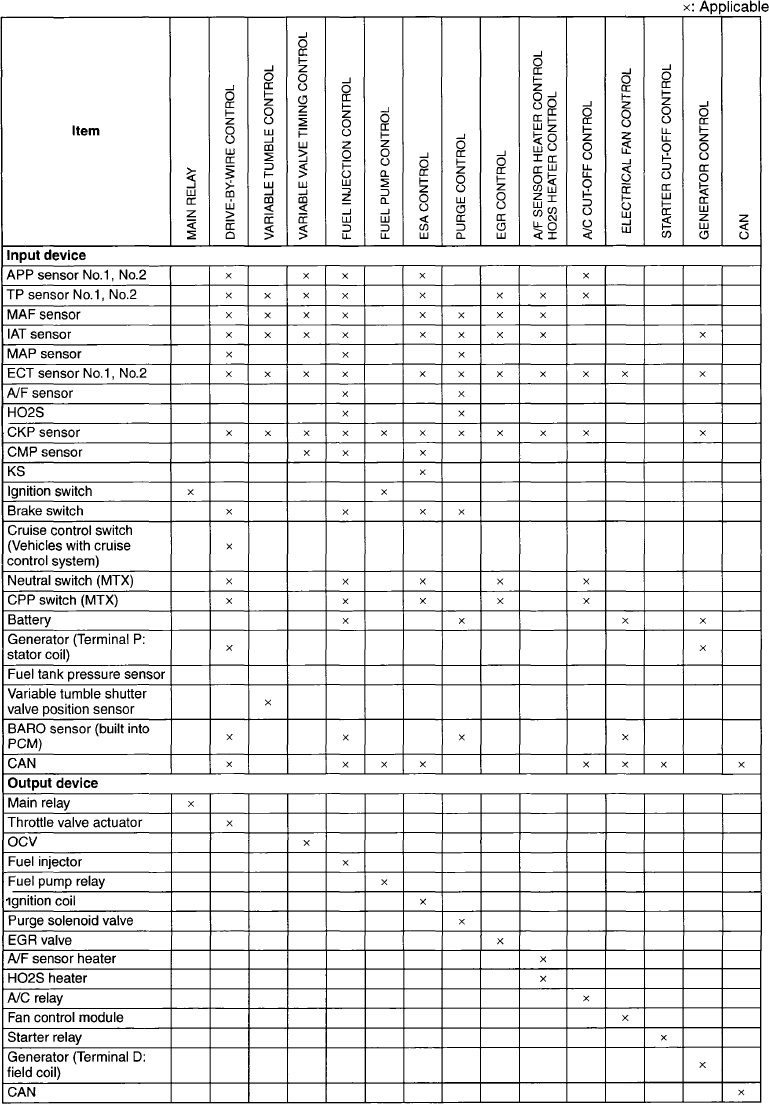

Fig 1: Control System Device And Control Relationship Chart
