ECT Sensor No.2
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Disconnect the ECT sensor No.2 connector.

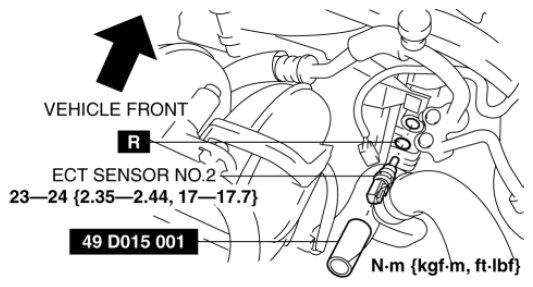

- Remove the ECT sensor No.2 using the SST
.
NOTE:
- Wipe off any oil or engine coolant if it gets on the ECT sensor No.2 installation area.
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
