Vehicles With BSM System
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .)

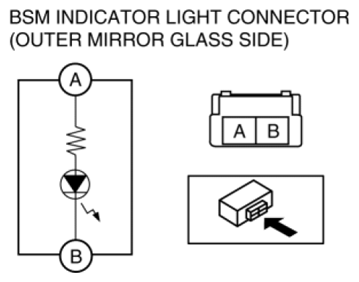

- Apply battery voltage to BSM indicator light connector (outer mirror glass side) terminal A, and connect terminal B to ground.
- Verify that the BSM indicator light illuminates.
- If there is any malfunction, replace the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
