ECT Sensor No.1

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  4. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  5. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  6. Remove the air duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  7. Disconnect the ECT sensor No.1 connector.
  8. Remove the ECT sensor No.1.

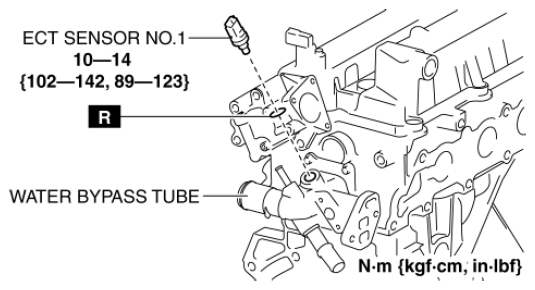

    Fig 1: Locating ECT Sensor No.1 With Torque Specifications
    G08155451
  9. Install in the reverse order of removal.
  10. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
