Engine Control System On-Board Diagnostic Wiring Diagram

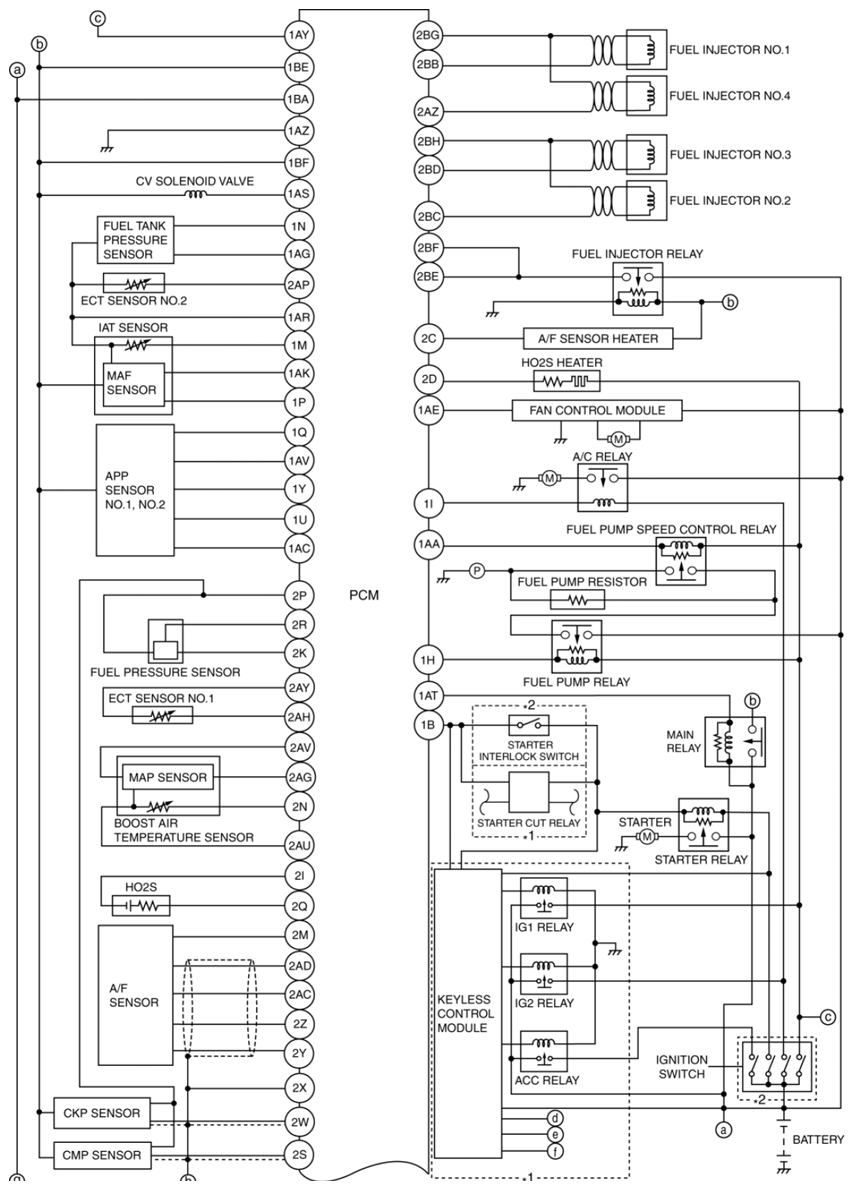

Fig 1: Engine Control System On-Board Diagnostic Wiring Diagram [MZR 2.3 DISI Turbo] (1 Of 2)
G08136939Courtesy of MAZDA MOTORS CORP.

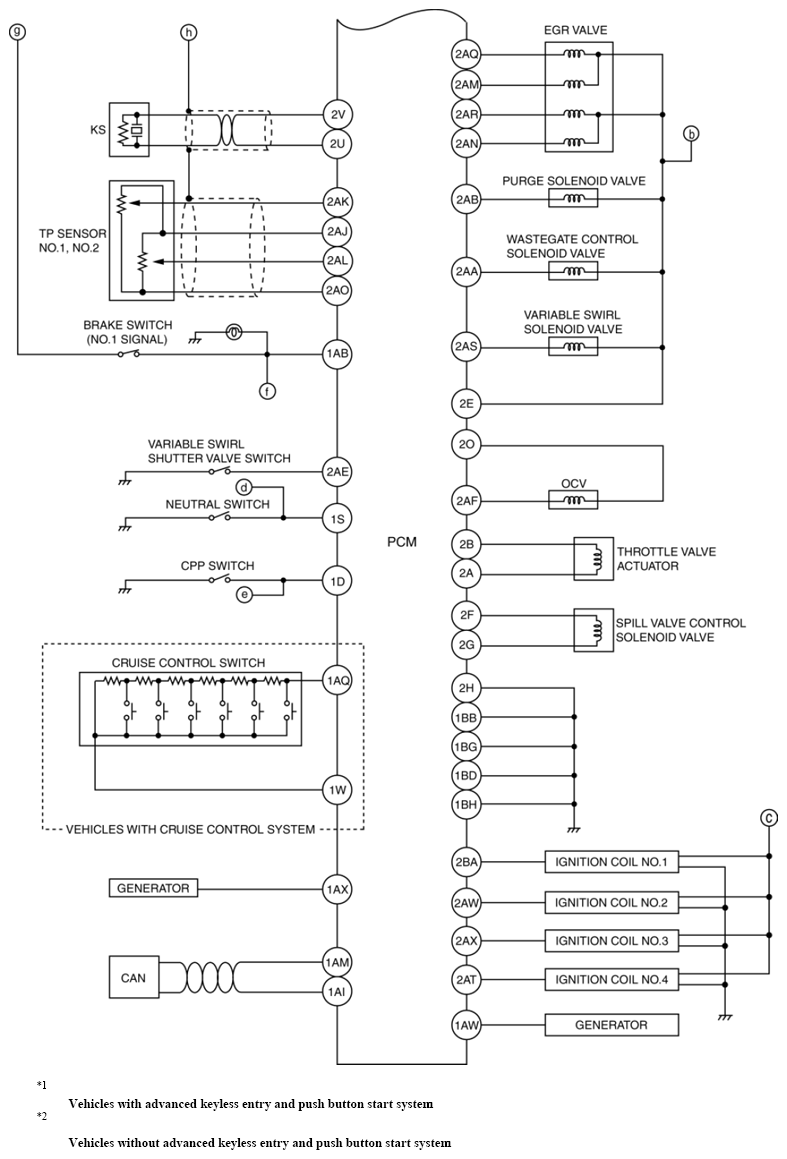

Fig 2: Engine Control System On-Board Diagnostic Wiring Diagram [MZR 2.3 DISI Turbo] (2 Of 2)
G08136940Courtesy of MAZDA MOTORS CORP.
