Monitoring System And Control System Device Relationship Chart

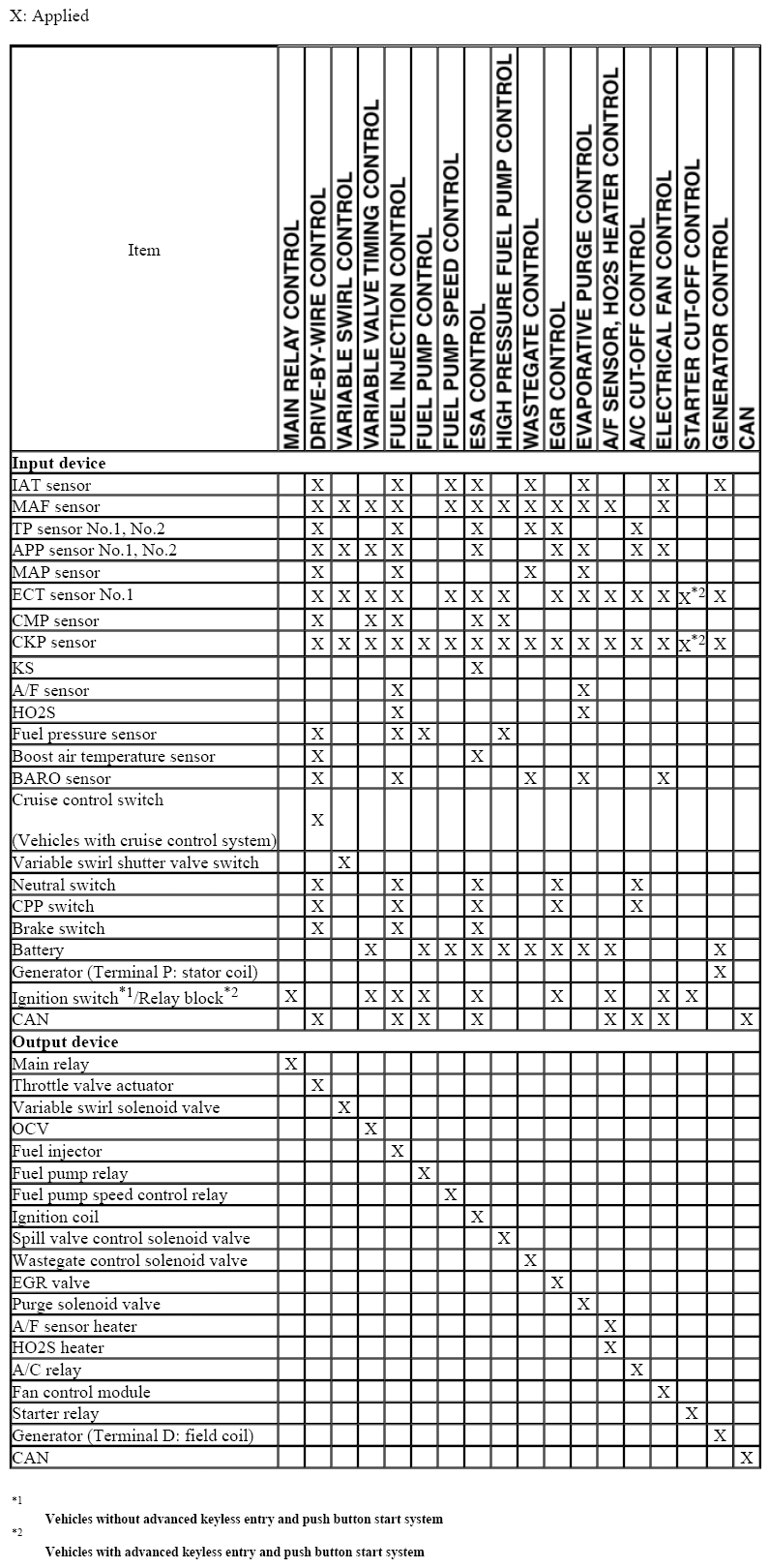

Fig 1: Monitoring System And Control System Device Relationship Chart (MZR 2.3 DISI Turbo)
G08136941Courtesy of MAZDA MOTORS CORP.
