Engine Control System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Engine Control System Diagram
WARNING:
This page is about a different variant/trim than selected.

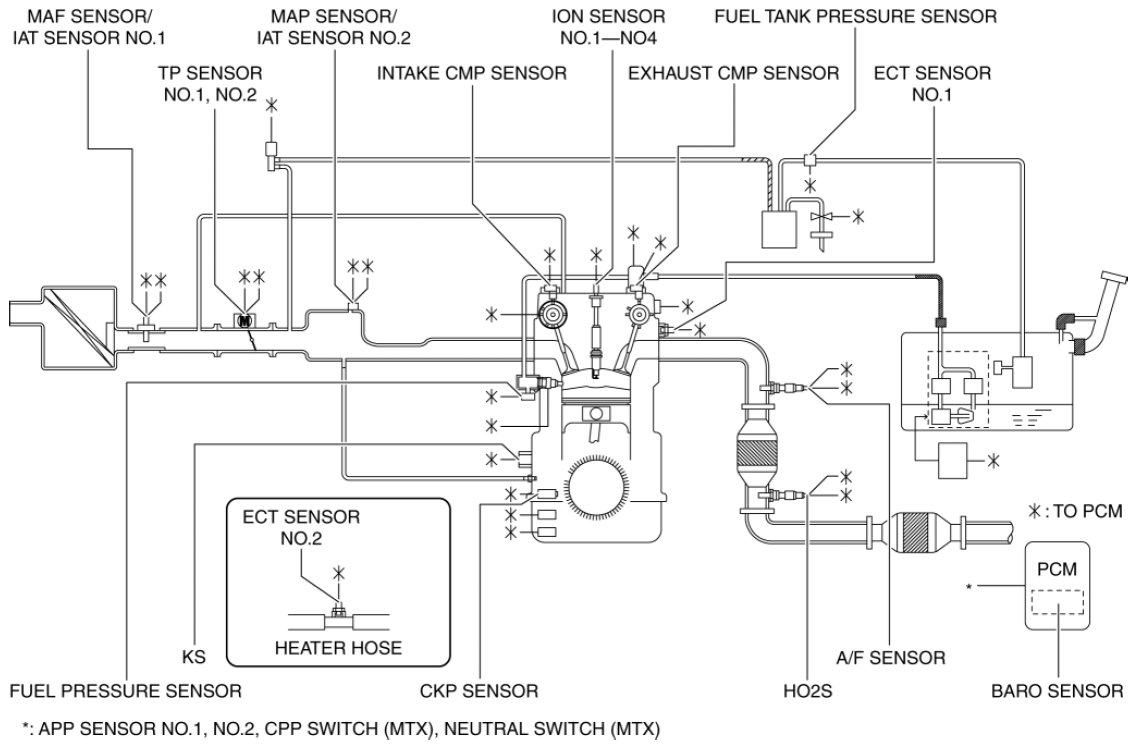

Fig 1: Engine Control System Diagram
