No. 2 Additional Key Programming Procedure (Using the M-MDS (IDS)): Procedure

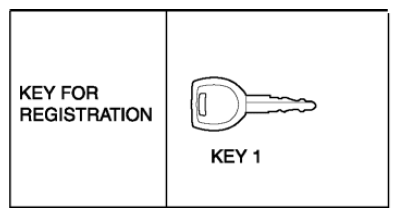

Fig 1: Valid Keys Procedure Chart

Step	Procedure	Action after procedure
1	PERFORM ADDITIONAL KEY PROGRAMMING Connect the M-MDS (IDS) to the DLC-2. (See M-MDS (IDS) CONNECTING PROCEDURE .) Switch the ignition ON using key 1. NOTE: Although the security indicator light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated. After vehicle identification, select the following from the M-MDS initial screen. Using an IDS (laptop PC): "Body" "Security" "PATS (immobilizer) function" Then, select the "Auxiliary key addition" from the screen menu. Perform the security access according to the directions on the M-MDS (IDS) screen. NOTE: After executing the above menu, "This operation is successful" is displayed. At this stage, the programming for the key switching the ignition ON is completed. After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, switch the ignition OFF (LOCK). Remove key 1. Are there other keys to be programmed?	Yes	Change the key and repeat Step 1. NOTE: Additional key programming can be performed using the procedure in No.1 Additional Key Programming Procedure (Using Two Valid Keys).
1		No	Go to the next step.
2	M-MDS COMPLETION After verifying that the PATS function menu is displayed again on the M-MDS (IDS) screen, select "Finish (this menu)". Switch the ignition OFF (LOCK).	Go to the next step.
3	VERIFY THAT KEY IS PROGRAMMED Verify that the engine can start and run for approx. 5 s or more using the programmed key. NOTE: When verifying that the engine starts, wait approx. 5 s or more before starting the engine using the next key.	Procedure is completed.
