Windshield Wiper Motor Assembly Note

  1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.
  2. Adjust the motor crank, wiper link No.1, and wiper link No.2 so that they are parallel as shown in the figure.

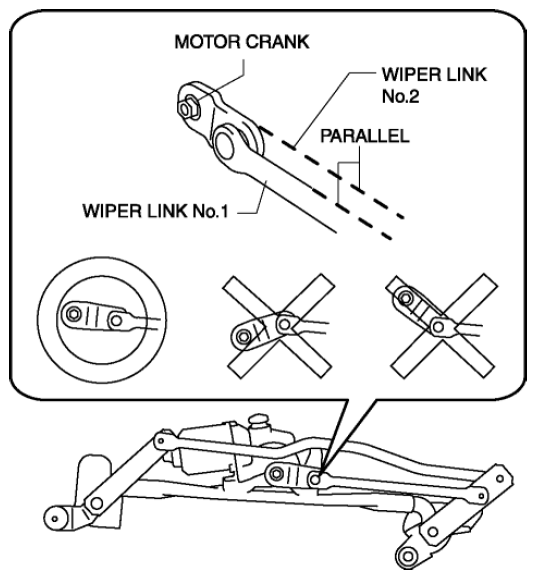

    Fig 1: Adjusting Motor Crank, Wiper Link No.1 And Wiper Link No.2
    G08153389
  3. Assemble the windshield wiper motor.
