No.24 A/C Is Always On Or A/C Compressor Runs Continuously: Notes

24 A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY
DESCRIPTION
  • A/C compressor magnetic clutch does not disengage.
POSSIBLE CAUSE
  • A/C compressor magnetic clutch engagement is stuck.
  • A/C relay is stuck closed.
  • Short to power supply in wiring harness between A/C relay and magnetic clutch
  • Communication error between instrument cluster and climate control unit
  • Communication error between PCM and instrument cluster
  • Short to ground in wiring harness between A/C relay and PCM
  • PCM malfunction

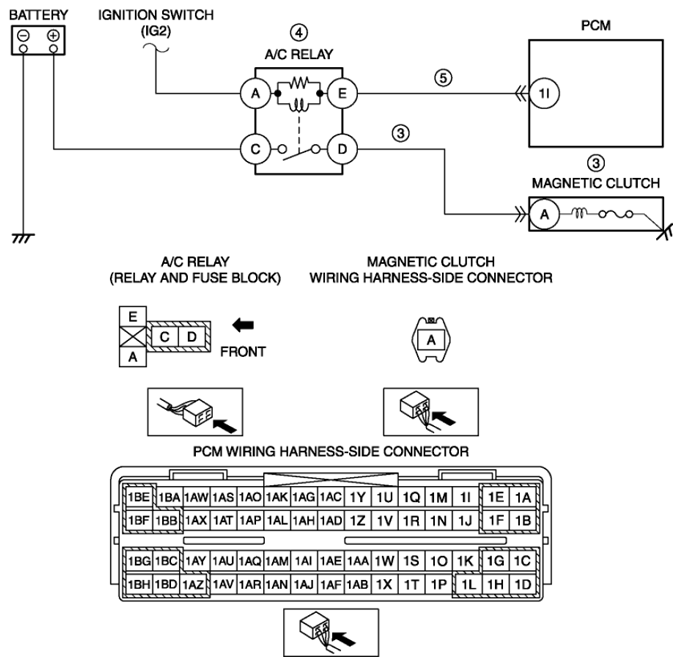

G08151839
