DTC B1047, B1992, B1993, B1994, B1995 [Two-Step Deployment Control System]: Notes

DESCRIPTION	B1047 Short to the driver-side side air bag module circuit and other air bag module circuits B1992 Driver-side side air bag module circuit short to power supply B1993 Driver-side side air bag module circuit short to body ground B1994 Driver-side side air bag module circuit open circuit or resistance high B1995 Driver-side side air bag module circuit resistance low
DETECTION CONDITION	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 1.10-9.64 ohms  is detected in driver-side side air bag module circuit Wiring harness between the driver-side side air bag module and SAS control module has a malfunction
FAIL-SAFE FUNCTION	-
POSSIBLE CAUSE	Driver-side side air bag module connector malfunction Open or short circuit or short to ground or short to power supply in the wiring harness between the driver-side side air bag module and SAS control module Driver-side side air bag module malfunction SAS control module malfunction

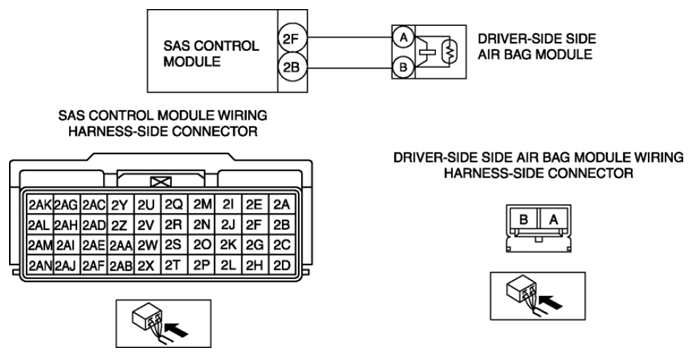

SYSTEM WIRING DIAGRAM
