DTC B1048, B1925, B1933, B1935, B1938 [Two-Step Deployment Control System]: Notes

DESCRIPTION	B1048 Short to the passenger-side air bag module (inflator No.1) circuit and other air bag module circuits B1925 Passenger-side air bag module (inflator No.1) circuit short to power supply B1933 Passenger-side air bag module (inflator No.1) circuit open circuit or resistance high B1935 Passenger-side air bag module (inflator No.1) circuit resistance low B1938 Passenger-side air bag module (inflator No.1) circuit short to body ground
DETECTION CONDITION	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. Resistance other than 1.10-5.77 ohms  detected in passenger-side air bag module (inflator No.1) circuit Malfunction in the wiring harness between the passenger-side air bag module (inflator No.1) and SAS control module
FAIL-SAFE FUNCTION	-
POSSIBLE CAUSE	Passenger-side air bag module connector malfunction Open or short circuit or short to ground or short to power supply in the wiring harness between the passenger-side air bag module and the SAS control module Passenger-side air bag module malfunction SAS control module malfunction

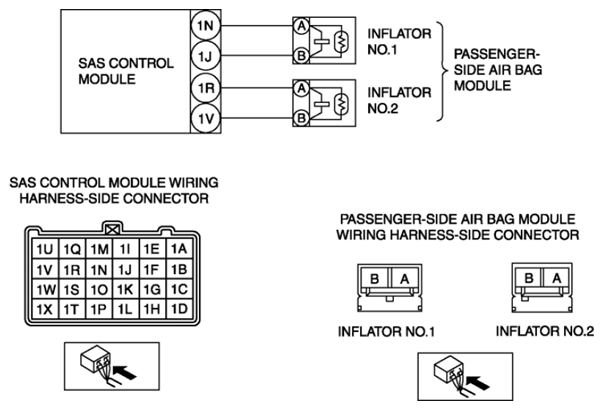

SYSTEM WIRING DIAGRAM
