Not using UV light (black light)

  1. Gather sample of the leaking oil using an absorbent white tissue.
  2. Then gather some sample of engine and transmission/transaxle oil onto a white cloth or piece of paper.
    • MT vehicles: Transmission/transaxle oil
    • AT vehicles: ATF
    • CVT vehicles: CVT fluid
  3. Compare the appearance and smell, and identify the type of oil that is leaking.

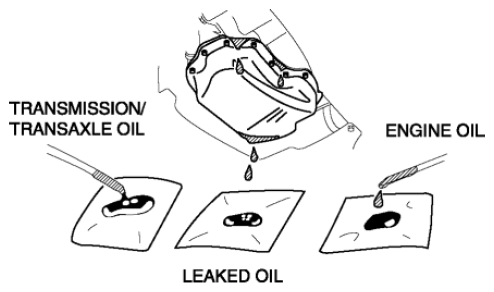

    Fig 1: Identifying Engine Oil Leaking Area
    G08151782
  4. Remove any oil on the engine or transmission/transaxle.
  5. Allow the engine to run for 30 min  .
  6. Check the area where the oil is leaking, then make necessary repairs.
