Connector A Connection Note

Verify that the connector A lever is tilted towards the wiring harness side as shown in the figure.
Insert the connector A straight until it contacts the SAS control module and verify that the lever reverts upward naturally.
CAUTION:
- If the connector A is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the connector A is inserted straight.

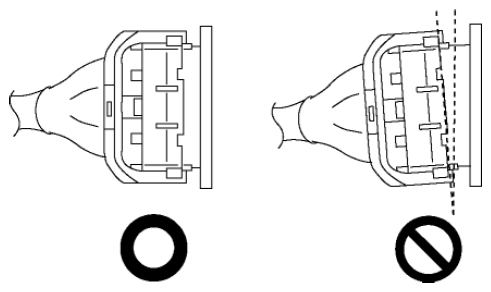

  Fig 1: Precaution For Connector A Connection
Push the lever until a click is heard.
