Body Control Module (BCM) Bracket No.2 Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. Dashboard under cover (passenger's side) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
12. Front scuff plate (passenger's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
13. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
14. Lower panel (passenger's side) (See LOWER PANEL REMOVAL/INSTALLATION .)
15. BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)

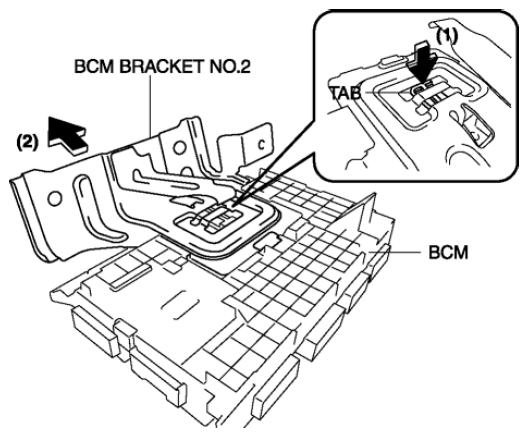

Press and release the tab in the direction of arrow (1) shown in the figure, and pull BCM bracket No.2 in the direction of arrow (2) shown in the figure to remove it from the BCM.

Fig 1: Identifying Tab Releasing Direction And BCM Bracket No.2 Pulling Direction
Install in the reverse order of removal.
