| DTC P0107:00 |
MAP sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor. If the input voltage is below 0.1 V
for 5 s
, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

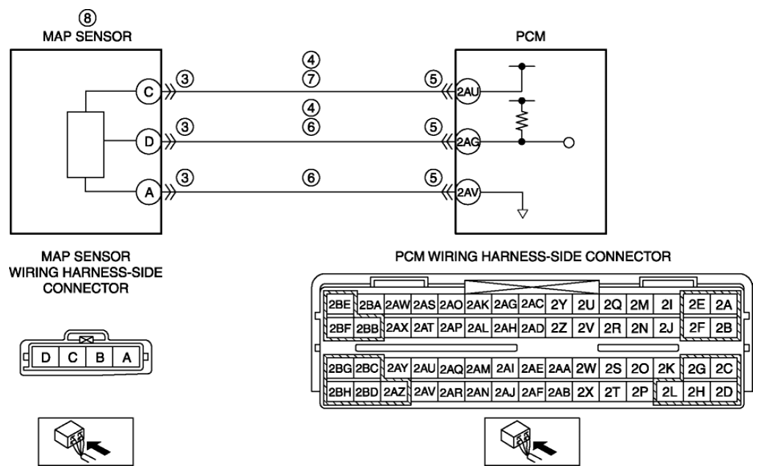

- MAP sensor connector or terminal malfunction
- Short to ground in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- Short to ground in wiring harness between MAP sensor terminal D and PCM terminal 2AG
- PCM connector or terminal malfunction
- Short circuit in MAP sensor signal circuit and ground circuit each other
- Open circuit in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- MAP sensor malfunction
- PCM malfunction
|
|
|
