| DTC P0122:00 |
TP sensor No.1 circuit low input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No.1 voltage is below 0.2 V
while the engine is running, the PCM determines that the TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction conditions in first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

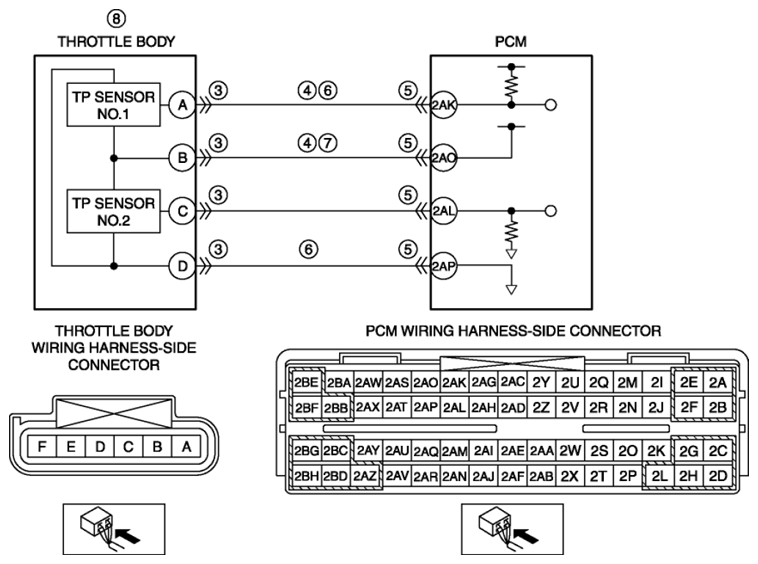

- Throttle body connector or terminal malfunction
- Short to ground in wiring harness between throttle body terminal A and PCM terminal 2AK
- Short to ground in wiring harness between throttle body terminal B and PCM terminal 2AO
- PCM connector or terminal malfunction
- Short circuit in TP sensor No.1 signal circuit and ground circuit each other
- Open circuit in wiring harness between throttle body terminal B and PCM terminal 2AO
- TP sensor No.1 malfunction
- PCM malfunction
|
|
|
