| DTC P0123:00 |
TP sensor No.1 circuit high input |
| DETECTION CONDITION |
- If the PCM detects the TP sensor No.1 voltage is to be above 4.85 V
after switch the ignition to ON, PCM determines that TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

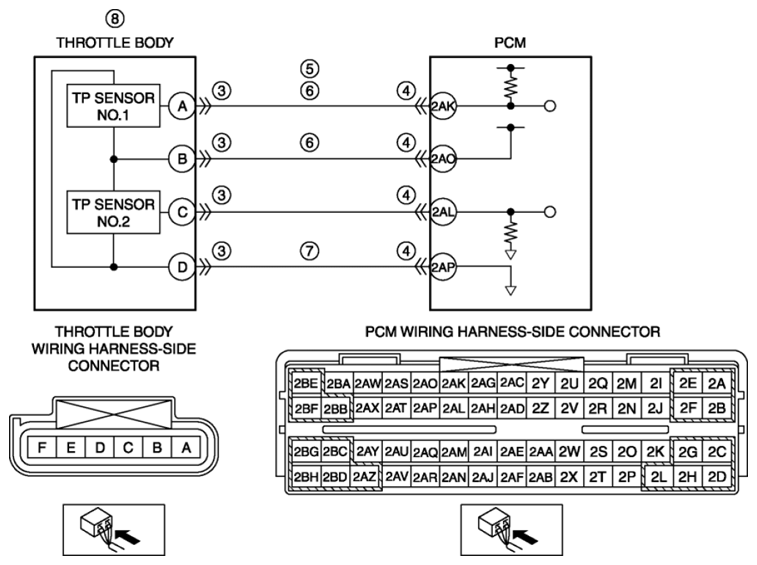

| POSSIBLE CAUSE |
- Throttle body connector or terminal malfunction
- PCM connector or terminal malfunction
- Short to power supply in wiring harness between throttle body terminal A and PCM terminal 2AK
- Short circuit in TP sensor No.1 signal circuit and power supply circuit each other
- Open circuit in wiring harness between throttle body terminal D and PCM terminal 2AP
- TP sensor No.1 malfunction
- PCM malfunction
|
|
|
