| DTC P0662:00 |
Variable intake air solenoid valve circuit high input |
| DETECTION CONDITION |
- The PCM monitors the variable intake air solenoid valve control signal. If the PCM turns the variable intake air solenoid valve on but current at the PCM terminal still remains high, the PCM determines that the variable intake air solenoid valve circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (other).
- The MIL does not illuminate.
- FREEZE FRAME DATA (Mode2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Variable intake air solenoid valve connector or terminal malfunction
- Variable intake air solenoid valve malfunction
- PCM connector or terminal malfunction

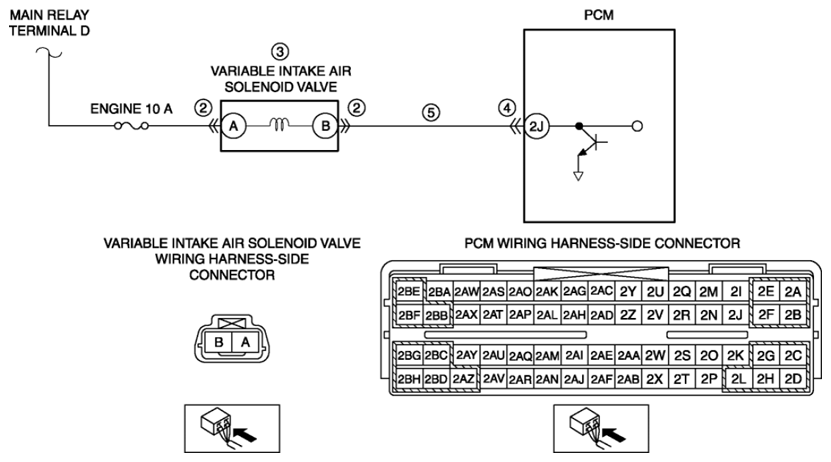

- Short to power supply in wiring harness between variable intake air solenoid valve terminal B and PCM terminal 2J
- PCM malfunction
|
|
|
