| DTC P2504:00 |
Charging system voltage high |
| DETECTION CONDITION |
- The PCM determines that the generator output voltage is above 18.5 V
or battery voltage is above 16 V
for 5 s
while the engine running.
Diagnostic support note
- This is a continuous monitor (other).
- The MIL does not illuminate.
- FREEZE FRAME DATA (Mode2)/Snapshot data is not available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Generator connector or terminal malfunction
- PCM connector or terminal malfunction

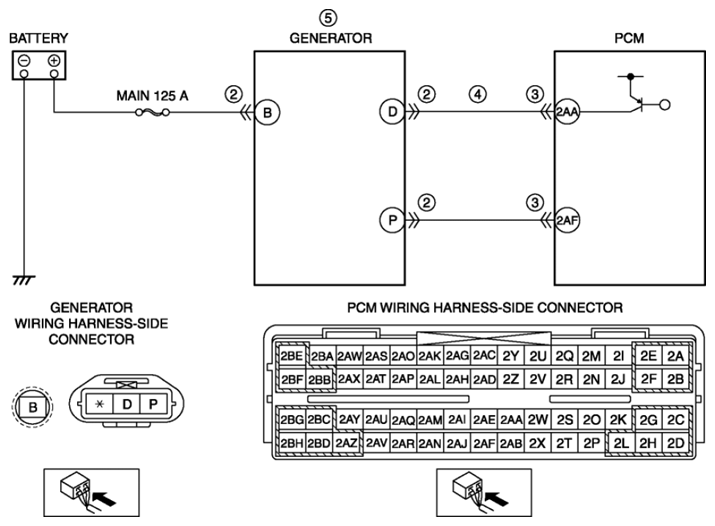

- Short to power supply in wiring harness between generator terminal D and PCM terminal 2AA
- Generator malfunction
- PCM malfunction
|
|
|
