DTC U201F:13 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
No communication with keyless receiver |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

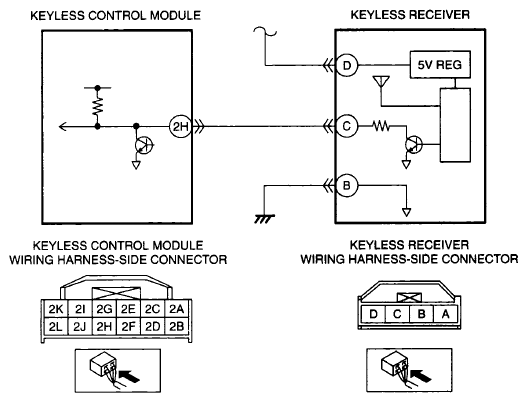

- Short to ground in wiring harness between keyless receiver terminal C and keyless control module terminal 2H
- Open circuit in wiring harness between keyless receiver terminal C and keyless control module terminal 2H
- Keyless receiver malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
