Key Interlock System/Shift-Lock System

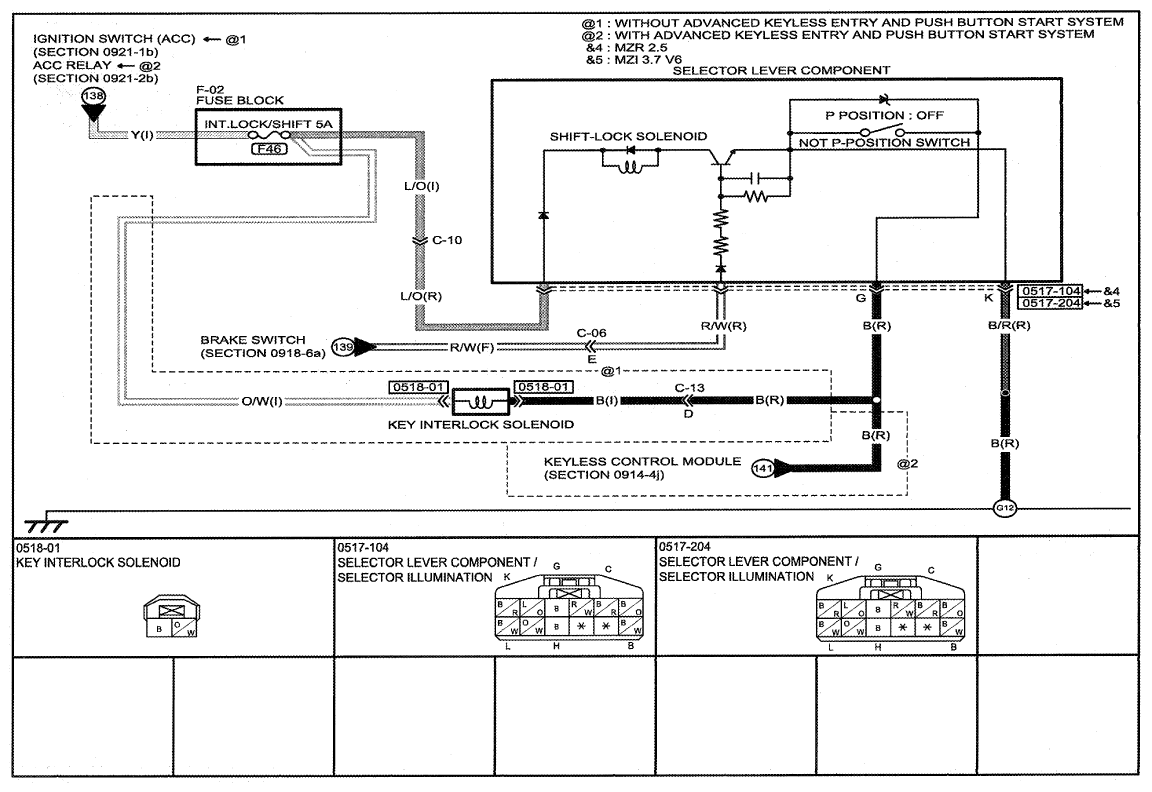

Fig 1: Key Interlock/Shift-Lock System Wiring Diagram (0518); 1 Of 2
G09120546

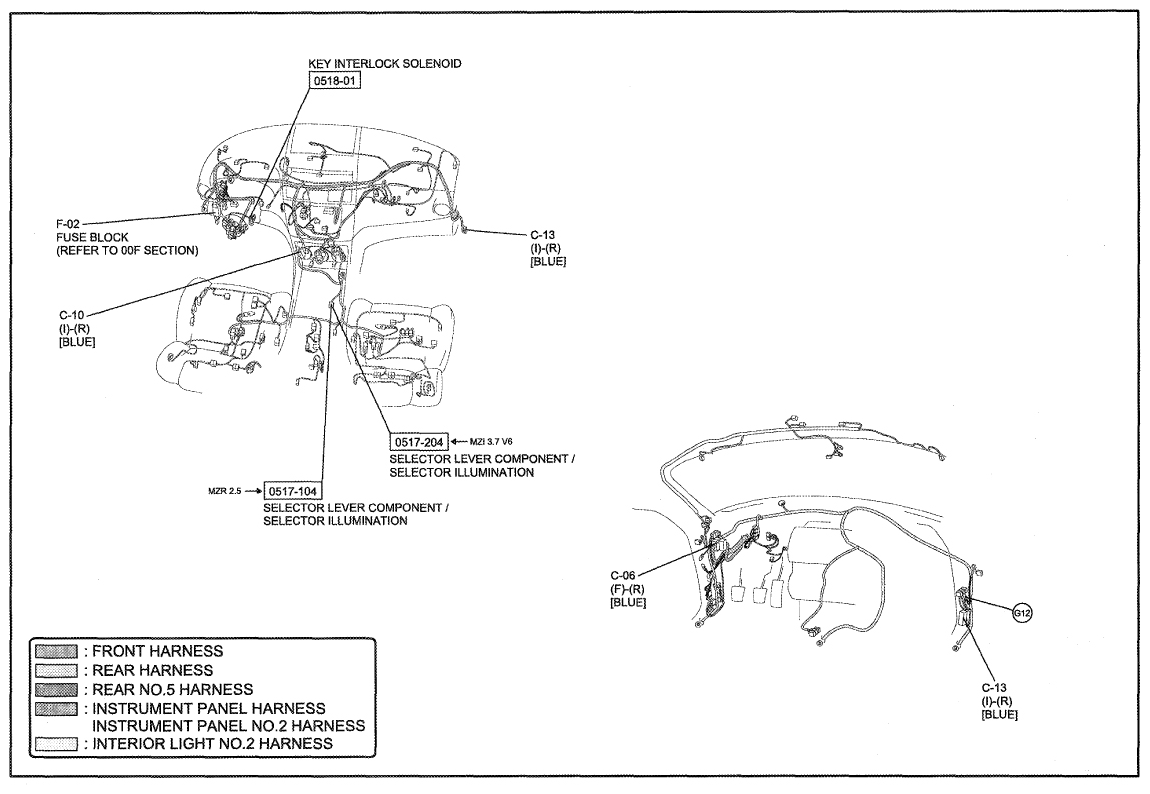

Fig 2: Key Interlock/Shift-Lock System Wiring Diagram (0518); 2 Of 2
G09120547
