Recliner Motor Inspection
- Disconnect the recliner motor connector.

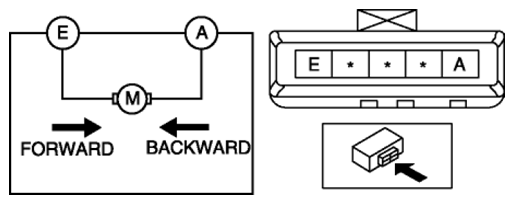

- Apply battery positive voltage to the recliner motor terminals and inspect the recliner motor operation.
- If not as specified, replace the front seat back frame. (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
Motor operation Connection B+ GND Forward E A Backward A E
