After Repair Procedure

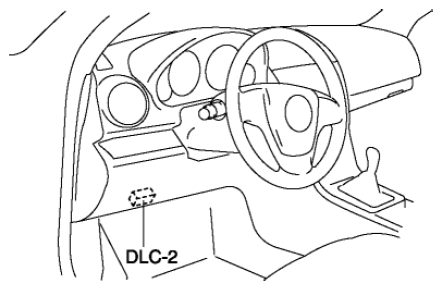

- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "PCM".
- Select "Retrieve CMDTCs".
- Verify the DTC according to the directions on the IDS screen.
- Press the clear button on the DTC screen to clear the DTC.
- Verify that no DTCs are displayed.
