| DTC P0102:00 |
MAF sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors input voltage from the MAF sensor when the engine running. If the input voltage is below 0.21 V
for 5 s
, the PCM determines that the MAF circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

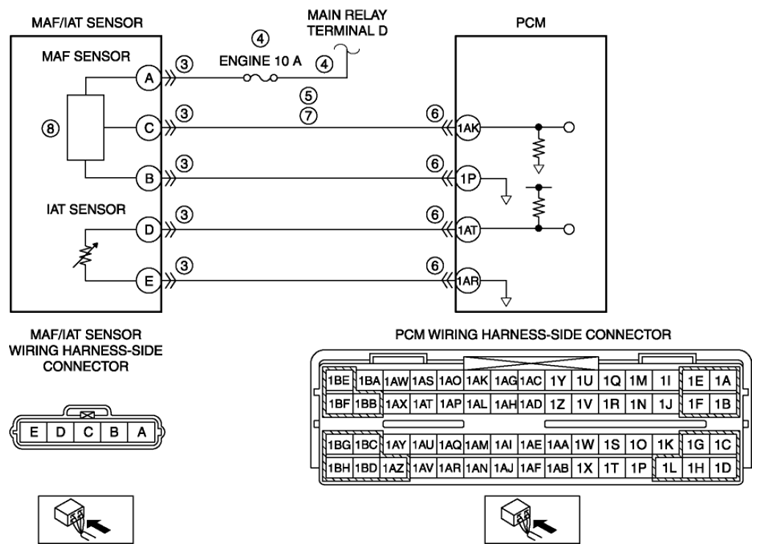

| POSSIBLE CAUSE |
- MAF/IAT sensor connector or terminal malfunction
- Short to ground or open circuit in MAF sensor power supply circuit
- Short to ground in wiring harness between main relay terminal D and MAF/IAT sensor terminal A
- ENGINE 10 A fuse malfunction
- Open circuit in wiring harness between main relay terminal D and MAF/IAT sensor terminal A
- Short to ground in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AK
- PCM connector or terminal malfunction
- Open circuit in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AK
- MAF sensor malfunction
- PCM malfunction
|
|
|
