| DETECTION CONDITION |

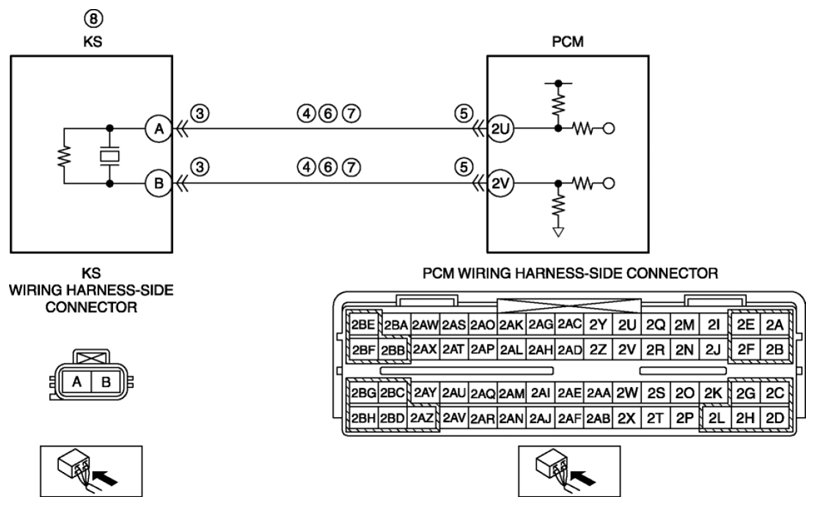

- The PCM monitors input signal from the KS when the engine is running. If the input voltage is below 0.2 V
for 5 s
, the PCM determines that the KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
