| DTC P2006:00 |
Variable tumble shutter valve stuck closed |
| DETECTION CONDITION |
- The PCM monitors mass the variable tumble shutter valve position using the variable tumble position sensor. If the PCM turns the variable tumble solenoid valve off but the variable tumble position still remain close for 5 s
(the variable tumble position sensor on), the PCM determines that the variable tumble shutter valve has been stuck closed.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Variable tumble solenoid valve connector or terminal malfunction
- Variable tumble solenoid valve malfunction
- Variable tumble shutter valve position sensor connector or terminal malfunction
- Variable tumble shutter valve position sensor malfunction
- Variable tumble shutter valve actuator malfunction (stuck closed)

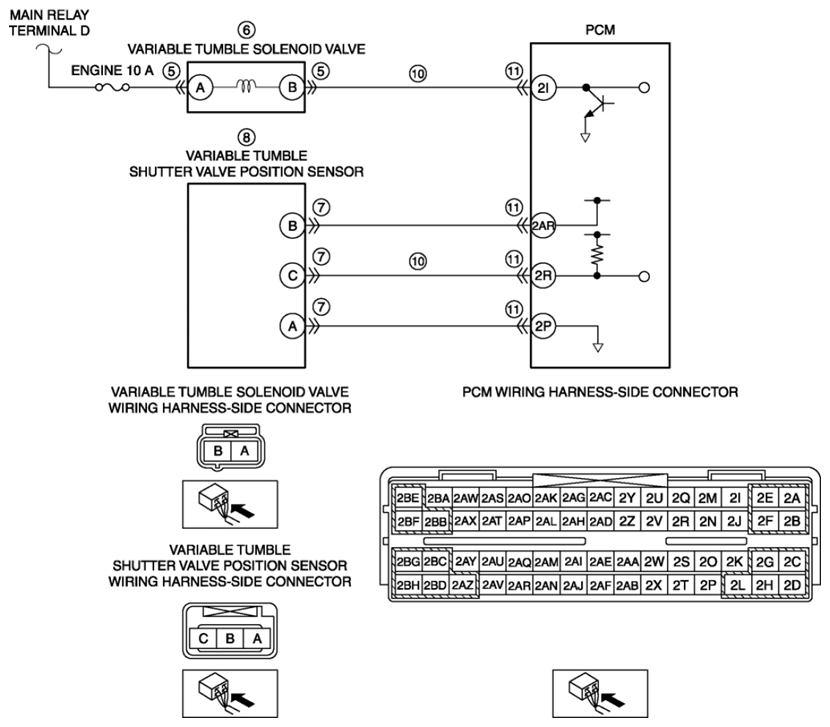

- Short to ground in wiring harness between variable tumble shutter valve position sensor terminal C and PCM terminal 2R
- Short to ground in wiring harness between variable tumble solenoid valve terminal B and PCM terminal 2I
- PCM connector or terminal malfunction
- PCM malfunction
|
|
|
