| DTC P2016:00 |
Variable tumble shutter valve position sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors input voltage from SCV position sensor. If input voltage is below 0.1 V for 4.9 s
, the PCM determines that the SCV position sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

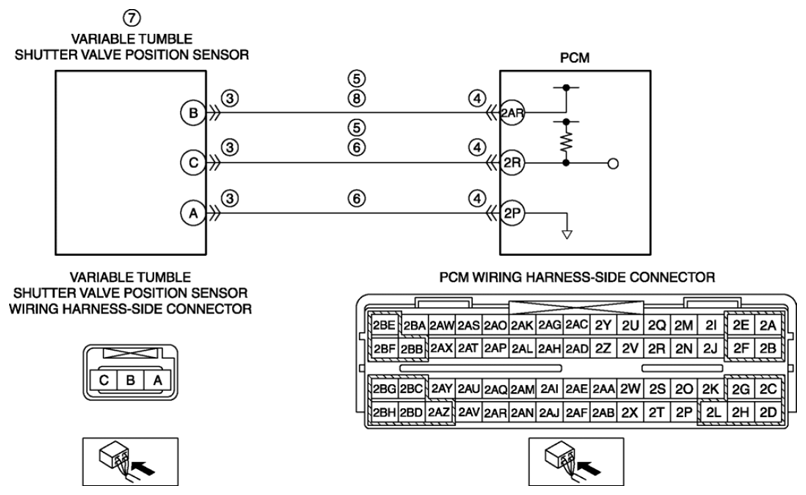

- Variable tumble shutter valve position sensor connector or terminal malfunction
- Short to ground in wiring harness between variable tumble shutter valve position sensor terminal B and PCM terminal 2AR
- Short to ground in wiring harness between variable tumble shutter valve position sensor terminal C and PCM terminal 2R
- PCM connector or terminal malfunction
- Short circuit in variable tumble shutter valve position sensor signal circuit and ground circuit each other
- Variable tumble shutter valve position sensor malfunction
- Open circuit in wiring harness between variable tumble shutter valve position sensor terminal B and PCM terminal 2AR
- PCM malfunction
|
|
|
