| DETECTION CONDITION |

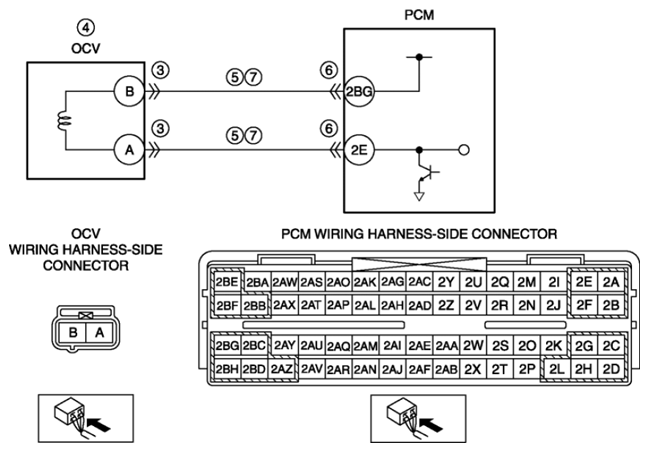

- The PCM monitors the OCV voltage. If the PCM detects the OCV control voltage (calculated from the OCV) is below the threshold voltage (calculated from the battery positive voltage), the PCM determines that the OCV circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
