| DTC P2122:00 |
APP sensor No.1 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from APP sensor No.1 when the engine is running. If the input voltage is less than 0.2 V
, the PCM determines that the APP sensor No.1 circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- APP sensor connector or terminal malfunction

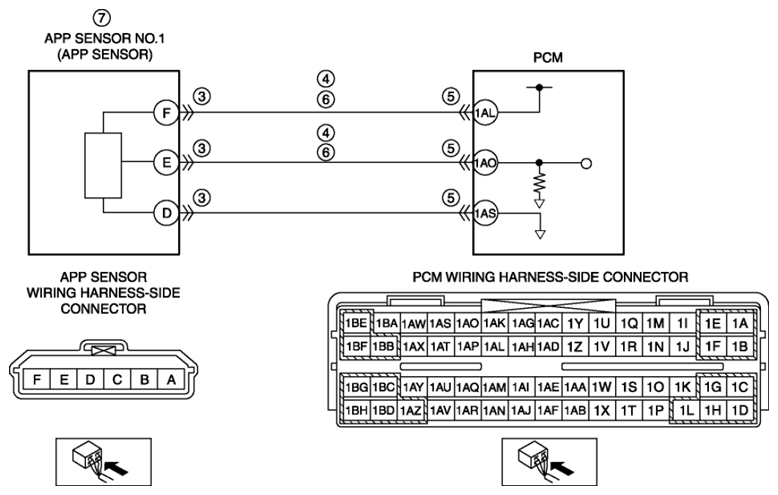

- Short to ground in wiring harness between APP sensor terminal F and PCM terminal 1AL
- Short to ground in wiring harness between APP sensor terminal E and PCM terminal 1AO
- PCM connector or terminal malfunction
- Open circuit in wiring harness between APP sensor terminal F and PCM terminal 1AL
- Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1AO
- APP sensor No.1 malfunction
- PCM malfunction
|
|
|
