Engine Control System On-Board Diagnostic Wiring Diagram

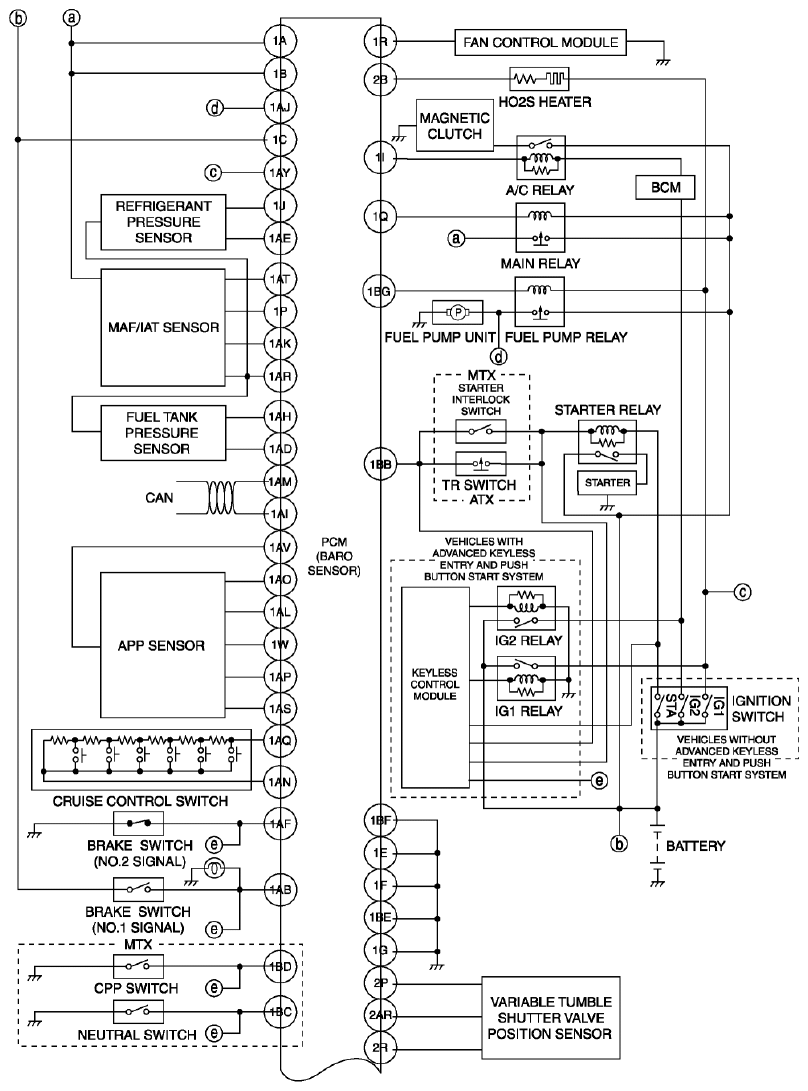

Fig 1: Engine Control System On-Board Diagnostic Wiring Diagram - MZR 2.5 (1 Of 2)
G08142256

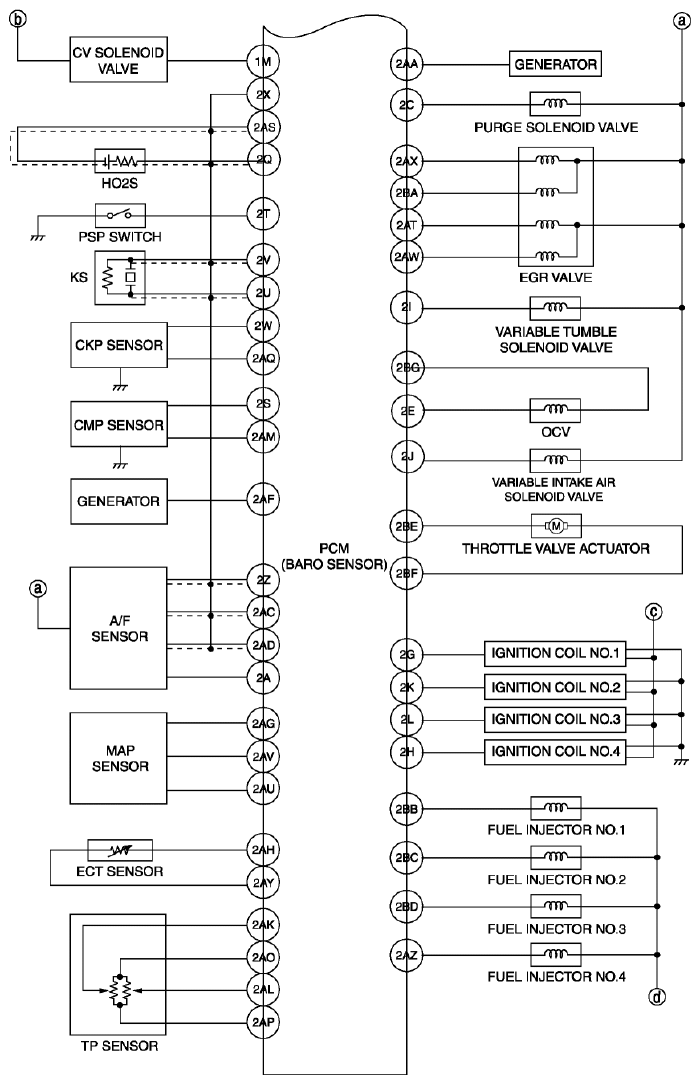

Fig 2: Engine Control System On-Board Diagnostic Wiring Diagram - MZR 2.5 (2 Of 2)
G08142257
