Pending Trouble Code Access Procedure

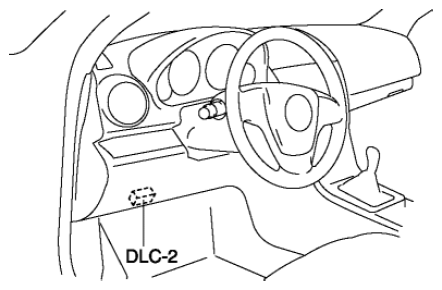

- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "PCM".
- Then, select the "Retrieve CMDTCs" and perform procedures according to directions on the IDS screen.
- Retrieve the pending trouble codes according to the directions on the IDS screen.
