Quick Diagnostic Chart

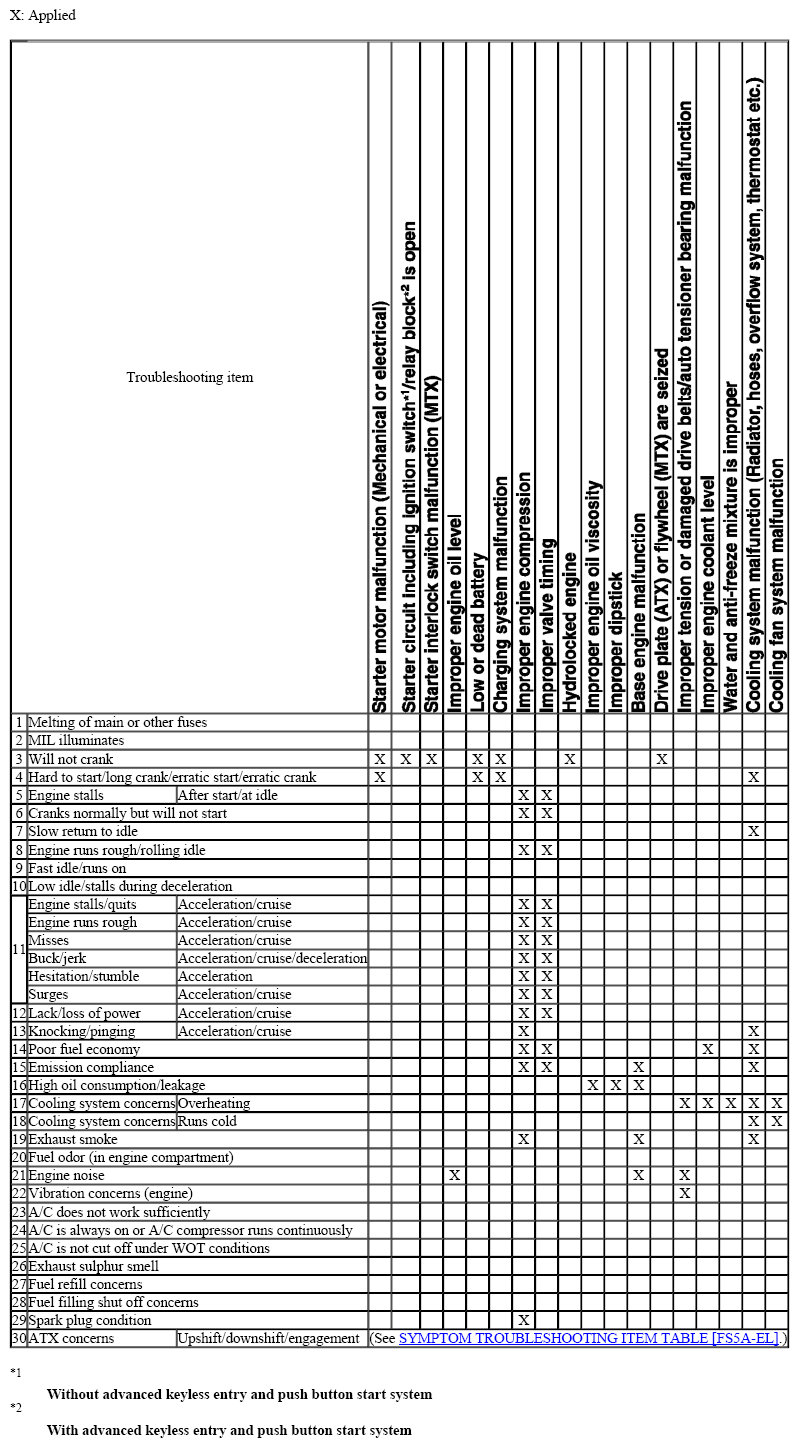

Fig 1: Engine Control System Quick Diagnostic Chart (MZR 2.5)

Courtesy of MAZDA MOTORS CORP.

^*1Without advanced keyless entry and push button start system

^*2With advanced keyless entry and push button start system

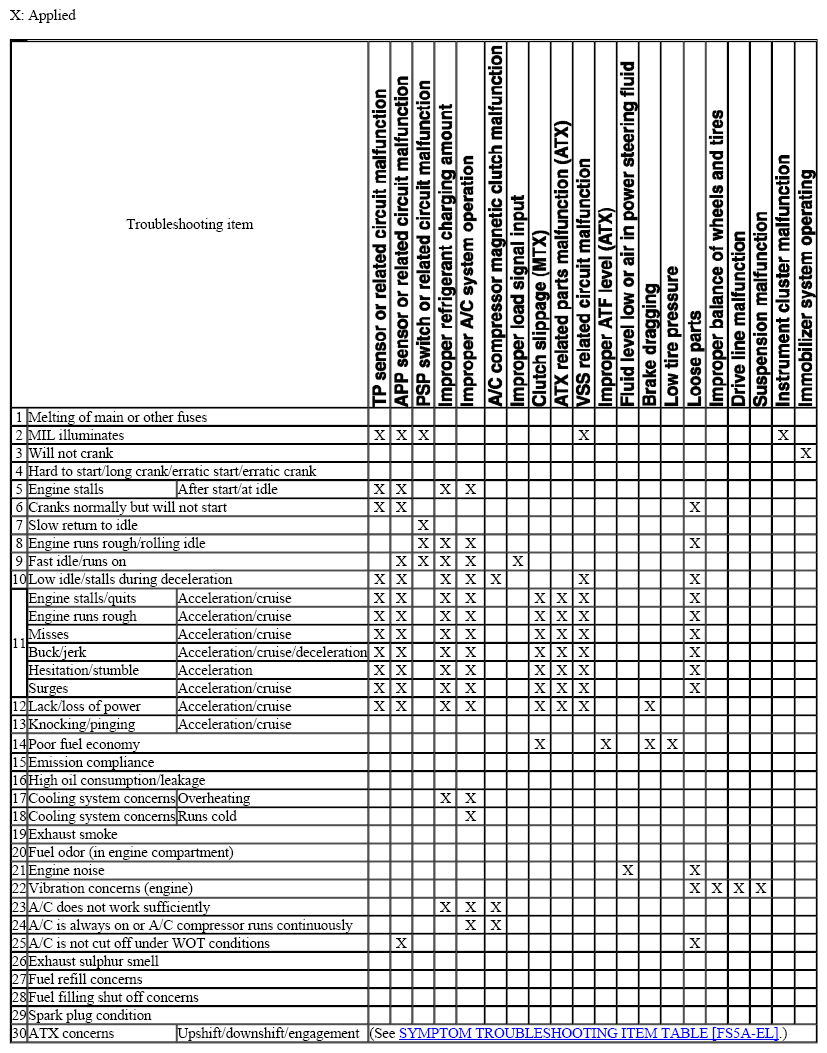

Fig 2: Engine Control System Quick Diagnostic Chart (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

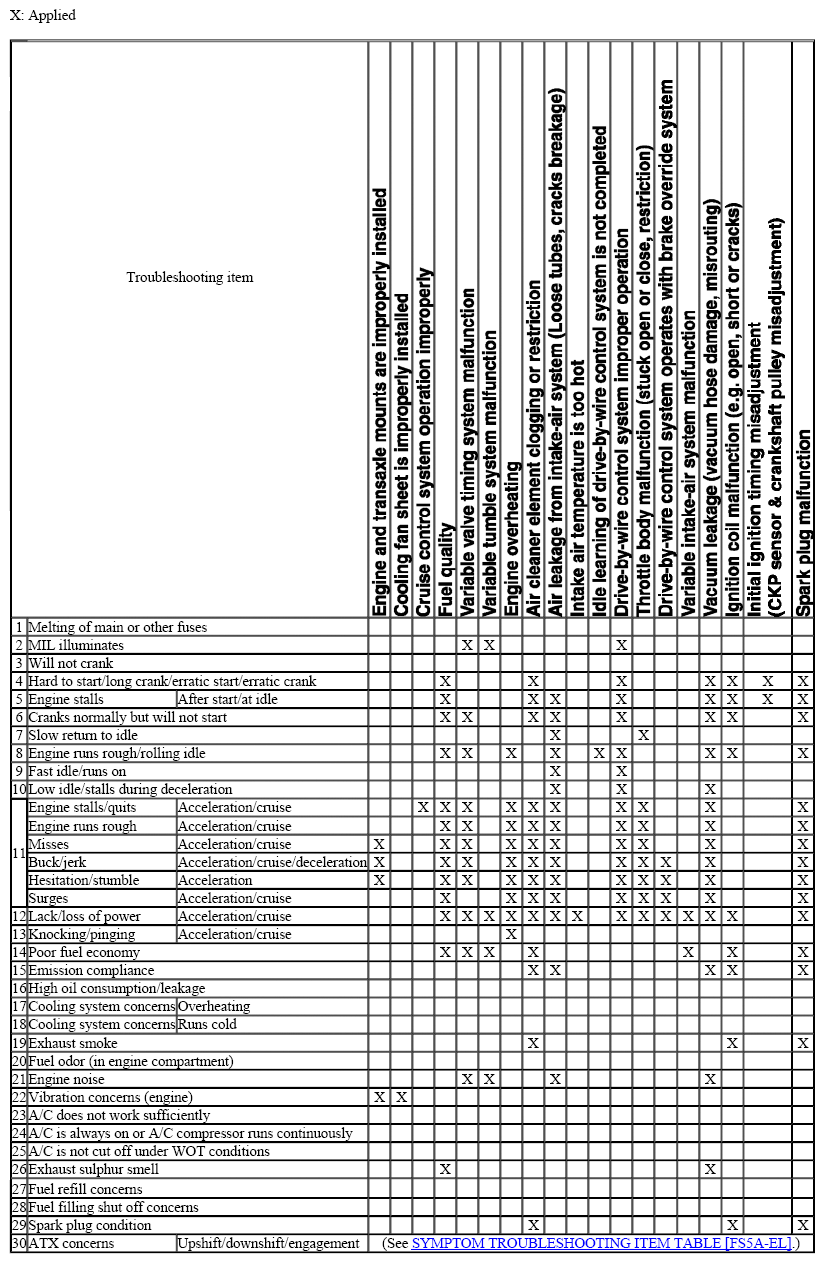

Fig 3: Engine Control System Quick Diagnostic Chart (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

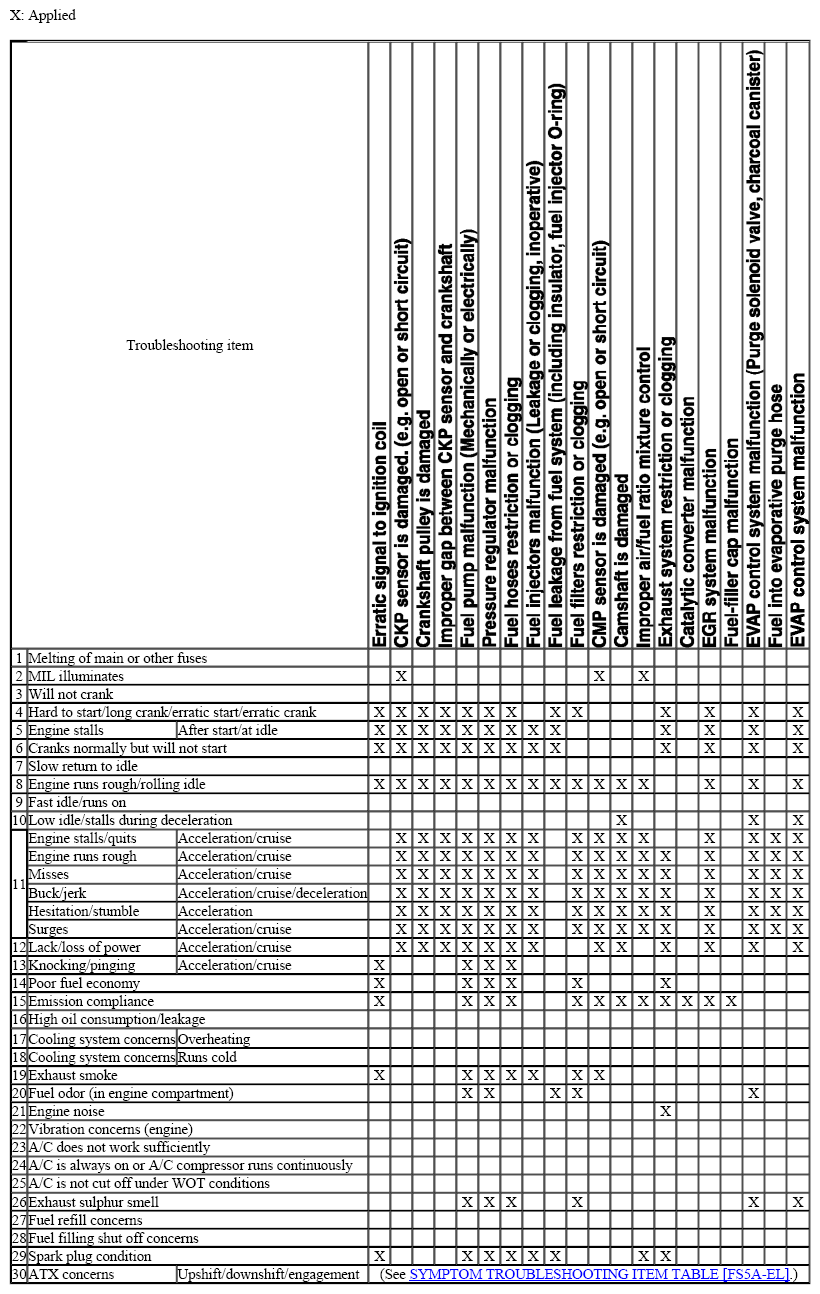

Fig 4: Engine Control System Quick Diagnostic Chart (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

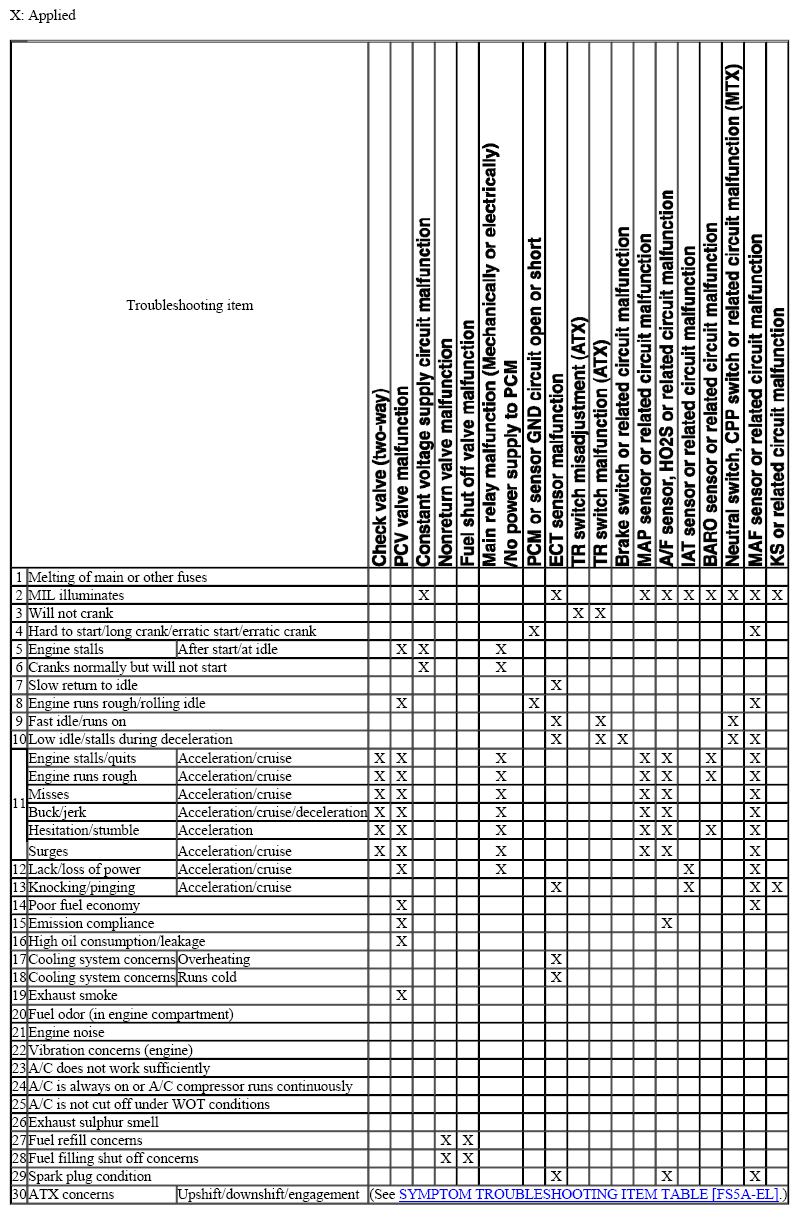

Fig 5: Engine Control System Quick Diagnostic Chart (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

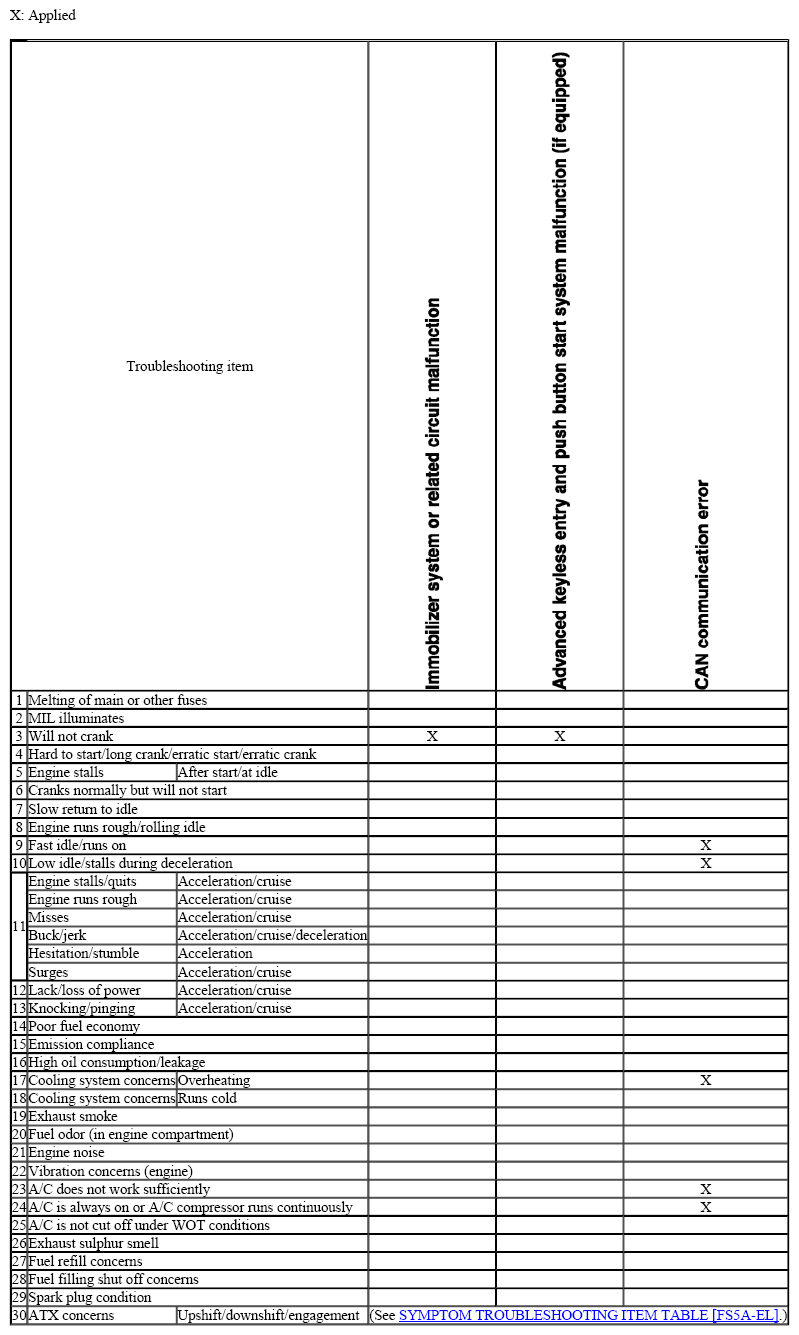

Fig 6: Engine Control System Quick Diagnostic Chart (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
