Control System Device And Control Relationship Chart

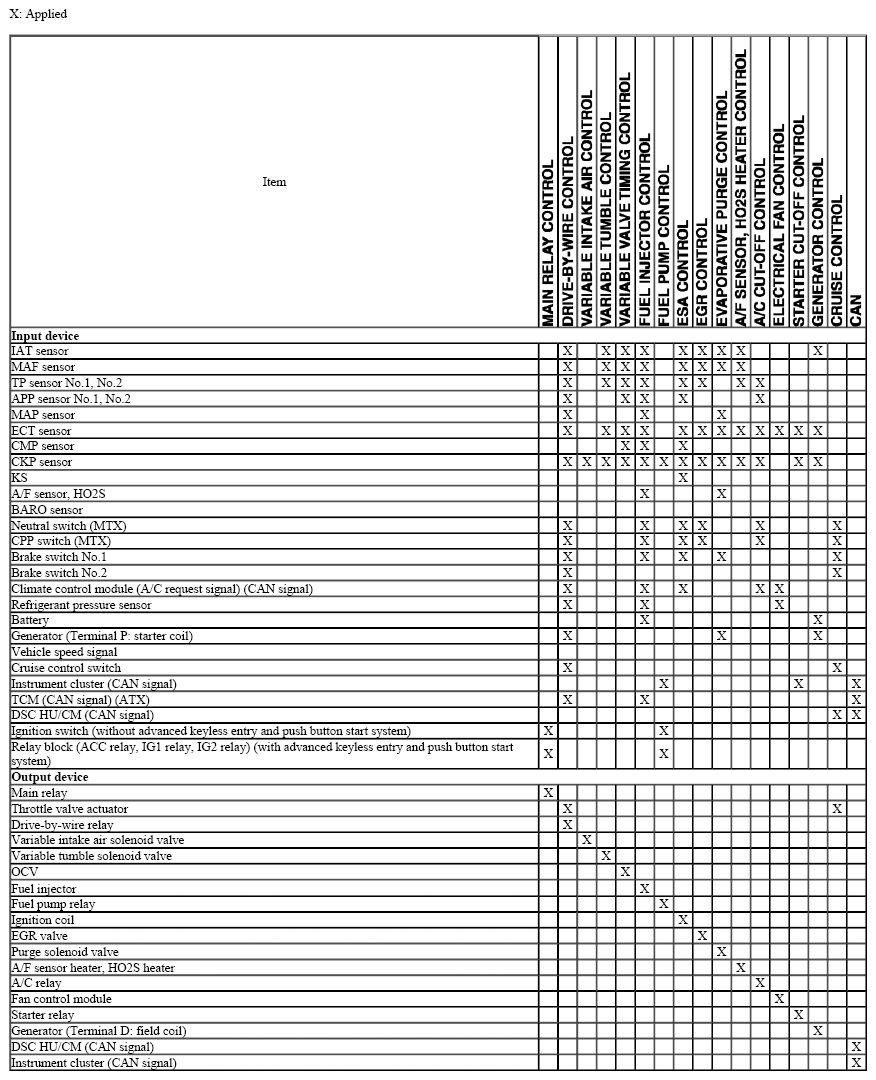

Fig 1: Engine Control System Device And Control Relationship Chart (MZR 2.5)
G08140207Courtesy of MAZDA MOTORS CORP.
