Continuity Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION ).

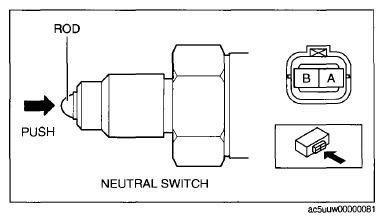

- Inspect for continuity between neutral switch No.1 terminal A and B.
- If not as specified, replace the neutral switch No.1. (See NEUTRAL SWITCH REMOVAL/INSTALLATION ).
NEUTRAL SWITCH CONTINUITY SPECIFICATION
| Measured condition | Continuity |
|---|---|
| Rod pushed | Continuity detected |
| Rod not pushed | No continuity |
