Control System Device And Control Relationship Chart
x: Applicable

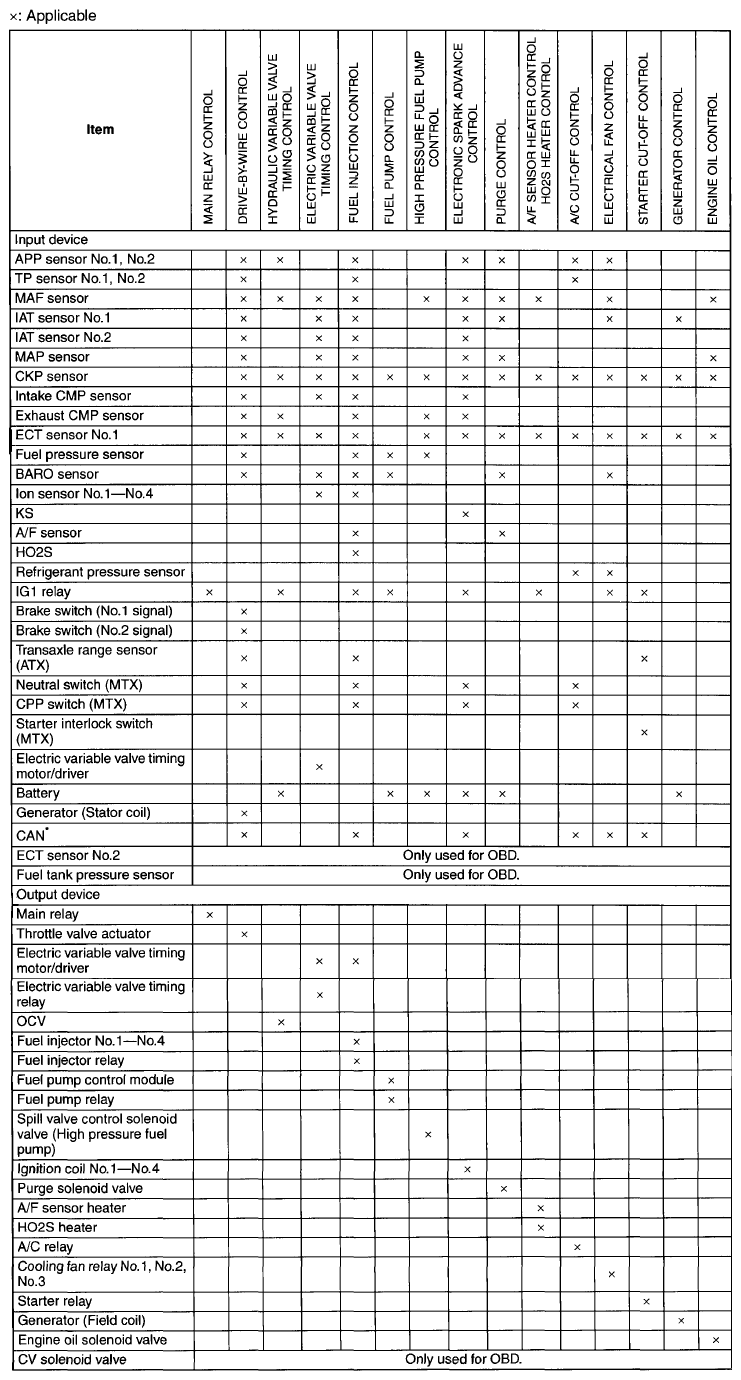

Fig 1: Control System Device And Control Relationship Chart
*: TCM (ATX), DSC HU/CM, instrument cluster, start stop unit
