Vehicle Front Side

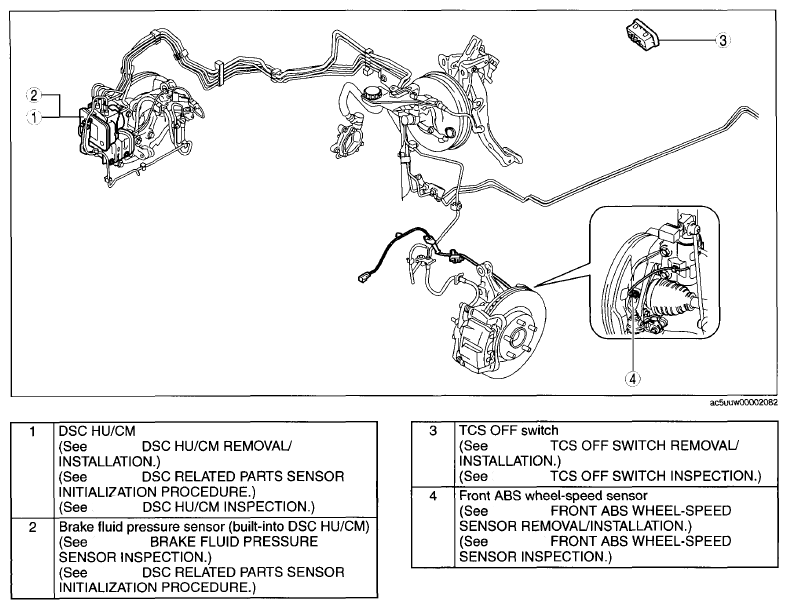

Fig 1: Identifying DSC/HU CM, TCS OFF Switch, Brake Fluid Pressure Sensor And Front ABS Wheel Speed Sensor
