Exhaust CMP Sensor

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  3. Disconnect the exhaust CMP sensor connector.
  4. Remove the exhaust CMP sensor.
  5. Install in the reverse order of removal.

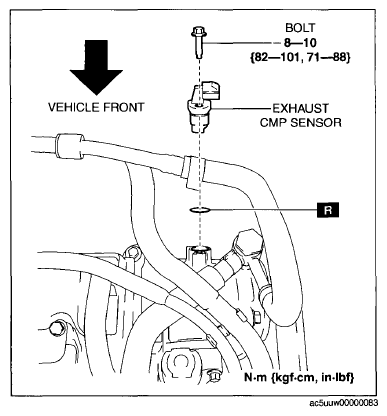

    Fig 1: Removing Exhaust CMP Sensor With Torque Specifications
    G09074616
