KS Installation Note

Verify that there is no foreign matter caught between the KS unit and cylinder block

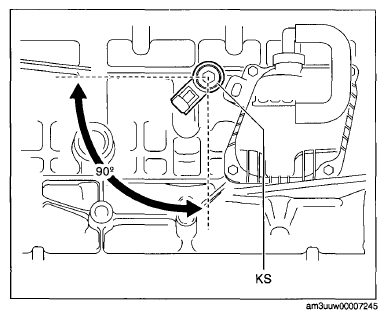

The direction of the KS connector is within the 90-degree angle range shown in the figure.

Fig 1: Turning KS Connector 90 Degrees
