No.1 Blown Fuses

1	BLOWN FUSES

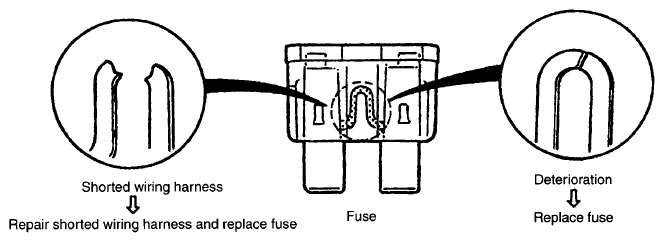

[TROUBLESHOOTING HINTS] Inspect condition of fuse.

Damaged fuse	Related wiring harness
MAIN	FAN GE fuse ADD FAN GE fuse FUEL PUMP fuse IG2 fuse ENG.+B fuse ENG.MAIN fuse INJECTOR fuse EVVT fuse
FAN GE	Cooling fan relay No.1
ADD FAN GE	Cooling fan relay No.3
1 ENGINE.IG1	Fuel pump relay PCM
FUEL PUMP	Fuel pump relay
STARTER	Generator Starter
AUDIO2	Ignition relay (ACC_STAB)
METER2	Ignition relay (IG1_STAB)
C/U IG1	Ignition relay (IG1_STAB)
IG2	ACC relay Starter relay
ENG.+B	PCM
ENG.MAIN	Main relay
INJECTOR	Fuel injector relay
EVVT	Electric variable valve timing relay
ENGINE1	Electric variable valve timing relay A/F sensor HO2S MAF sensor/IAT sensor No. 1 Intake CMP sensor
ENGINE2	Fuel injector relay Purge solenoid valve OCV PCM Engine oil solenoid valve Exhaust CMP sensor Ignition coil/ion sensor No. 1 Ignition coil/ion sensor No.2 Ignition coil/ion sensor No.3 Ignition coil/ion sensor No.4
ENGINE3	Cooling fan relay No.1 Cooling fan relay No.2 Cooling fan relay No.3
